TE Connectivity AMP Connectors 1274563-3

TE 1274563-3 Mini BNC Plug, 75 Ohm, RG-179, Obsolete

MPN 1274563-3
Obsolete

TE Connectivity 1274563-3 mini BNC plug, male pin, 75 Ohm, crimp termination for RG-179 cable, bayonet lock, 2 GHz max, 300 V, 500 mating cycles, bulk pack includes connector body, contact, and ferrule.

$23.8900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1274563-3 key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating300 V
Frequency - max2 GHz
Cable groupRG-179
Operating temperature-40°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk

All specifications

1274563-3 additional specifications
ParameterValue
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

Mini BNC plug for RG-179 — 75 Ohm, crimp termination

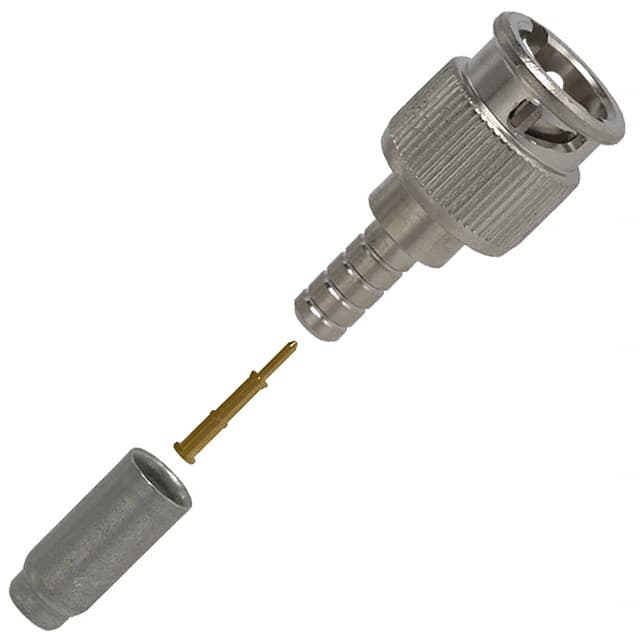

It ships as a three-piece kit — connector body, centre contact, and crimp ferrule — ready for field termination.

Obsolete — sourcing through independent distribution

No official replacement order code is on record.

Crimp termination for RG-179 — field-fit checklist

The shield termination is crimp, not solder or clamp — the ferrule compresses the braid against the cable jacket for a gas-tight connection. The bayonet lock mates with any standard mini BNC jack; the 75 Ohm impedance holds only when the cable is RG-179 or a 75 Ohm equivalent with the same dielectric diameter.

500-cycle mating duty — field-service reconnect

The 500-cycle rating means this plug survives repeated mate/unmate cycles in test equipment, patch panels, or field-service connections where the cable gets disconnected and reconnected regularly. The gold-plated centre contact resists oxidation and fretting corrosion through those cycles. Silver housing colour is cosmetic — the nickel body finish provides the environmental seal.
