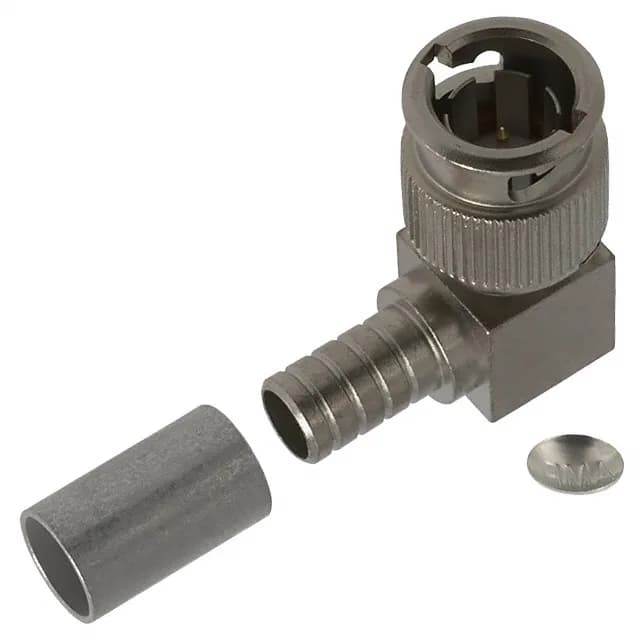

TE Connectivity 1274566-2 Mini BNC Plug, 75 Ohm, 2 GHz

MPN 1274566-2
Active

TE Connectivity, Mini BNC Plug, 75 Ohm, 1274566-2, 1 port, male pin, solder contact, crimp shield, bayonet lock, 2 GHz, 300 V, 500 mating cycles, nickel body, gold center contact, -40 to 85°C, Bulk.

$16.0587 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1274566-2 key specifications
ParameterValue
MountingFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating300 V
Frequency - max2 GHz
Cable groupAT&T 734A
Operating temperature-40°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk

All specifications

1274566-2 additional specifications
ParameterValue
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance75 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

Mini BNC Plug for 75 Ohm Video and Telecom Links

The TE Connectivity 1274566-2 is a mini BNC plug, male pin, built for 75 Ohm systems. It ships as a kit with the connector, an end cap, and a ferrule — three pieces, one order code. The 75 Ohm impedance and 2 GHz frequency ceiling place it squarely in the broadcast video, CCTV, and telecom infrastructure world, not the 50 Ohm RF test bench.

The centre contact is solder-terminated; the shield is crimped. That split — solder pin, crimp braid — is standard for mini BNCs on flexible coax: the solder joint gives a repeatable impedance through the pin, and the crimp barrel grabs the braid for low DC resistance and pull-off strength. The listed cable group is AT&T 734A, a 75 Ohm series coax. The gold-plated centre contact and nickel-plated brass body resist corrosion in outdoor or high-humidity installs.

Electrical and Environmental Limits

Rated 300 V and 2 GHz maximum frequency. The bayonet lock (not a threaded coupling) means the mate is quick but the retention torque is lower than an N or SMA — fine for patch panels and camera drops, not for high-vibration engine compartments.
