TE Connectivity, BNC Mini Jack, 1274568-2, 75 Ohm, 1 port, panel mount bulkhead, bayonet lock, crimp termination, 2 GHz, 300 V, 500 mating cycles, includes connector + contact + ferrule.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 300 V |
| Frequency - max | 2 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | AT&T 734A |
| Operating temperature | -40°C~85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Package | Tray |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |

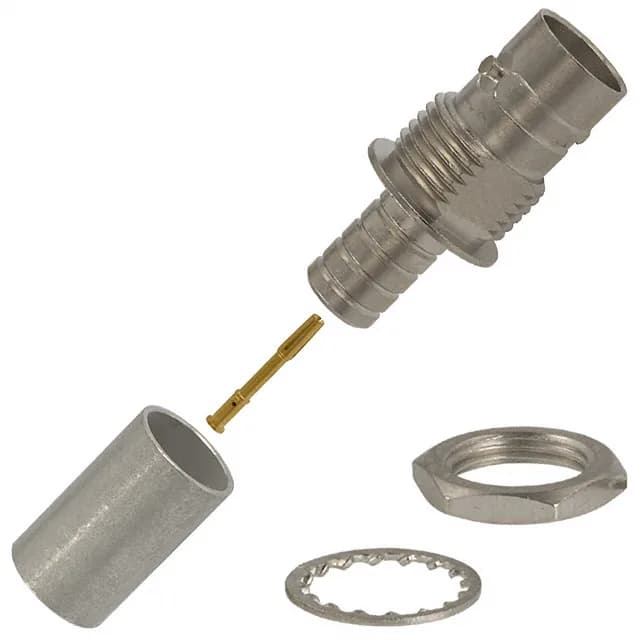

The 1274568-2 ships as a 3-piece kit: one connector body, one crimp contact, and one ferrule. Shield termination is crimp, and the cable group specified is AT&T 734A, a common 75 Ohm coax used in structured cabling and broadcast video runs.
Brass body with nickel finish, PTFE dielectric, and a silver housing colour. The bulkhead mount uses a front-side nut, so panel access from both sides is needed for installation.
Three pieces: one connector body, one crimp contact, and one ferrule. The contact is gold-plated phosphor bronze.
