TE Connectivity AMP Connectors 130527

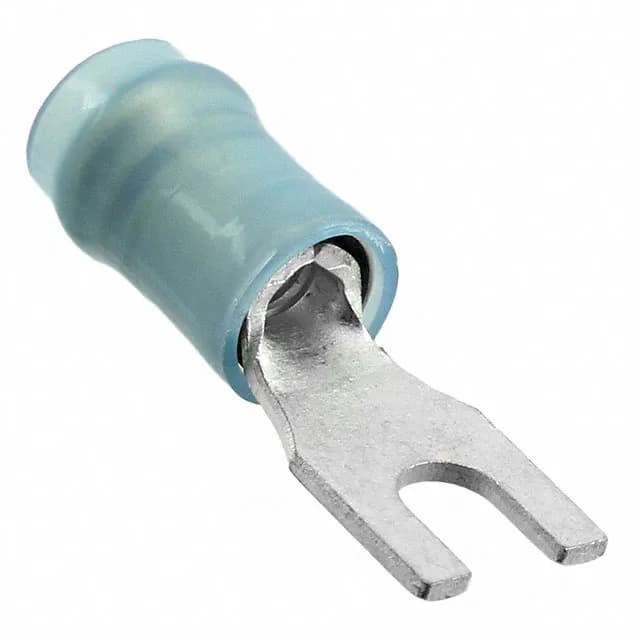

TE PIDG 130527 Spade Terminal, 14-16 AWG, #4 Stud, Blue

MPN 130527
Active

TE Connectivity AMP Connectors PIDG spade terminal, order code 130527, 14-16 AWG, #4 stud, tin-plated copper contact, insulated nylon, free hanging (in-line), crimp termination, bulk.

$0.6200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

130527 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge14-16 AWG
ColorBlue
Contact materialCopper
Width - outer edges0.250\" (6.35mm)
Material - insulationPolyamide (PA), Nylon
PackageBulk
InsulationInsulated
TerminationCrimp
Stud (Tab size)4 Stud
Contact finishTin
Length - overall0.813\" (20.65mm)
Insulation diameter0.115\" ~ 0.170\" (2.92mm ~ 4.32mm)
Length - termination0.404\" (10.26mm)
Tongue inside opening0.119\" (3.02mm)
Length - ring center to termination0.280\" (7.11mm)

Product details

Crimp and wire range

The 130527 is the 14-16 AWG member of TE's PIDG spade terminal line, crimped onto the stripped conductor and insulated with a nylon sleeve that covers the wire entry and the barrel. The insulation sleeve accepts wire diameters from 0.115" to 0.170" (2.92 mm to 4.32 mm) — the crimp tool must match the barrel length of 0.404" (10.26 mm) to seat the conductor and insulation grip in one stroke.

Stud size and contact finish

The tongue opening measures 0.119" (3.02 mm) for a #4 stud, with an outer width of 0.250" (6.35 mm) — the ring center to termination length is 0.280" (7.11 mm), which sets the clearance to adjacent terminals on a common stud. The copper contact is tin-plated, suited for dry indoor environments where the tin surface maintains contact resistance under the crimp barrel.

MPN
130527
