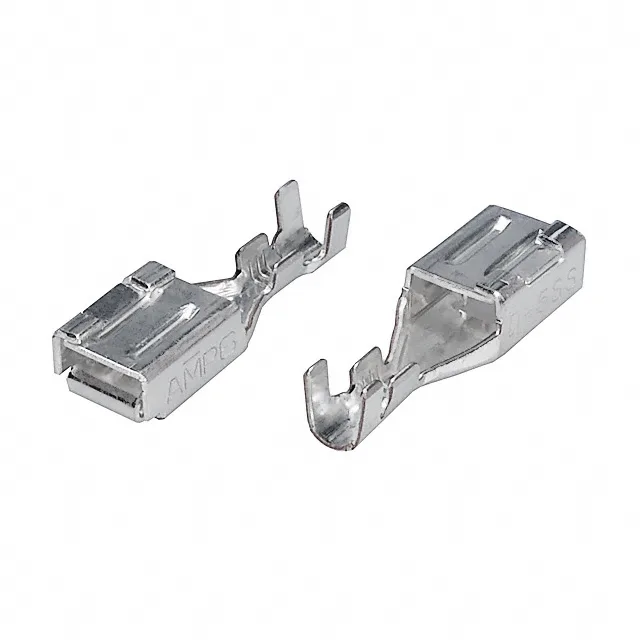

TE Connectivity AMP Connectors Dynamic D-5 socket contact, order code 1318985-6, 16-20 AWG, silver-plated mating surface, 100.0µin (2.54µm) plating thickness, crimp termination, tape and reel packaging.
| Parameter | Value |
|---|---|
| Series | Dynamic D-5 |
| Wire gauge | 16-20 AWG |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Pin or socket | Socket |
| Contact finish | Silver |
| Contact termination | Crimp |
| Contact finish thickness | 100.0µin (2.54µm) |
The 1318985-6: Silver sustains lower contact resistance under high current and through more mating cycles than tin, making this contact the preferred fit for power circuits in the Dynamic D-5 line.
16-20 AWG. The crimp termination accepts solid or stranded conductors within that range.
