TE Connectivity AMP Connectors ring terminal, order code 133017-3, 8 AWG, red, insulated, circular, 0.091" (2.31mm) thickness, tin-plated copper, serrated crimp, free hanging in-line, bulk.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 8 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.468\" (11.89mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.091\" (2.31mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Contact finish | Tin |
| Length - overall | 1.240\" (31.50mm) |
| Insulation diameter | 0.220\" (5.59mm) |

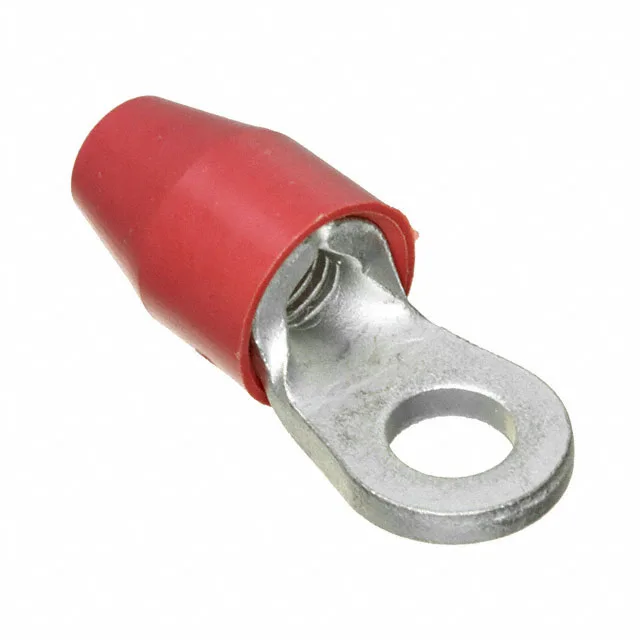

The 133017-3 is a TE Connectivity AMP Connectors ring terminal for 8 AWG wire, insulated with red nylon and terminated by crimp. The tin-plated copper contact is 0.091" (2.31mm) thick with a serrated inner barrel that grips the conductor strands during crimp.
The insulation is red nylon (polyamide).
