TE Connectivity AMP Connectors 134462-1 — Ring Terminals

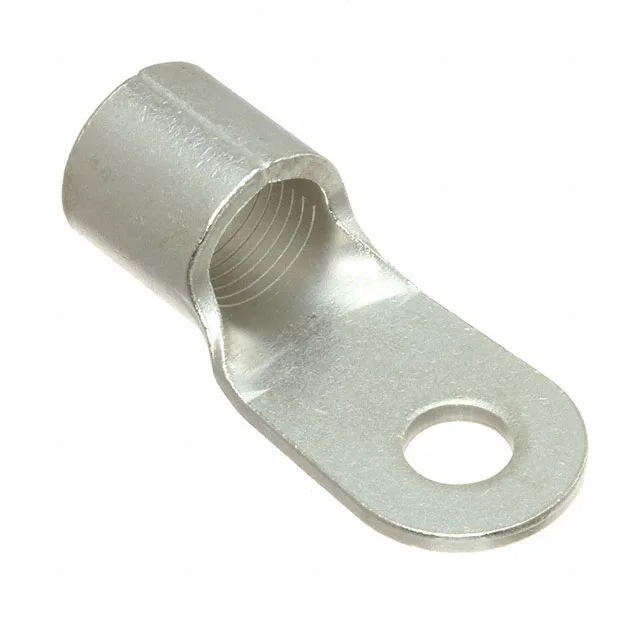

TE Connectivity 134462-1 Ring Terminal, 2 AWG, M6 Stud

MPN134462-1
Active

TE Connectivity AMP Connectors Solistrand, Strato-Therm ring terminal, order code 134462-1, 2 AWG, M6 stud, circular, non-insulated, 0.070" (1.78mm) thick, nickel-plated copper, crimp termination, free hanging (in-line).

$9.8400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSolistrand, Strato-Therm
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

134462-1 specifications
ParameterValue
SeriesSolistrand, Strato-Therm
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge2 AWG
Contact materialCopper
Width - outer edges0.626\" (15.90mm)
PackageBulk
Thickness0.070\" (1.78mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)M6 Stud
Contact finishNickel
Length - overall1.575\" (40.00mm)

Product details

Ring terminal for 2 AWG — M6 stud, free-hanging crimp

The 134462-1 is a 2 AWG circular ring terminal from TE Connectivity's Solistrand and Strato-Therm series, designed for free-hanging crimp termination on an M6 stud.

Position within the Solistrand ring terminal family

Within the Solistrand/Strato-Therm ring terminal line, the 134462-1 (2 AWG, M6 stud) sits between the 6 AWG 323171 (5/16" stud, 0.057" thick) and the 1/0 AWG 323180 (3/8" stud, 0.070" thick). All three share nickel-plated copper construction, non-insulated crimp termination, and free-hanging mounting — the stud size and wire gauge are the selection axes.
