TE Connectivity AMP Connectors 1367073-2 — Pluggable Assemblies

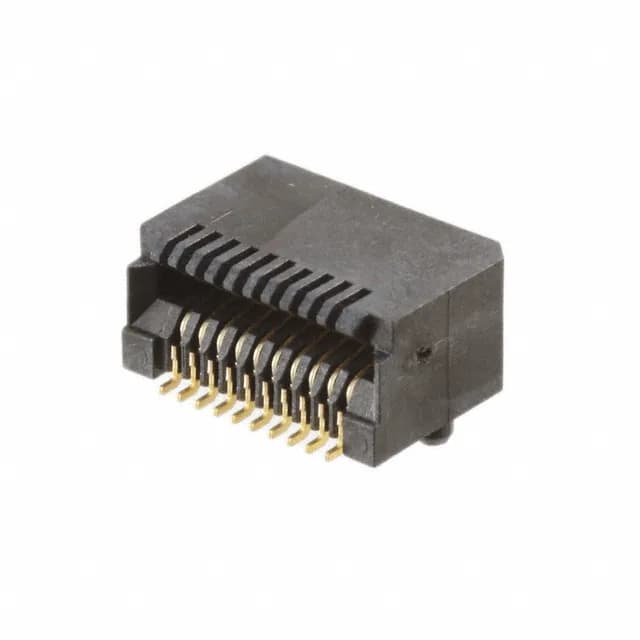

TE 1367073-2 SFP Receptacle, 20 Pos, Right Angle SMT

MPN1367073-2
Active

TE Connectivity SFP receptacle, 1367073-2, 20 positions, right-angle surface mount, gold-plated contacts, 30.0µin gold, Tape & Reel.

$3.3580Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1367073-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1367073-2 specifications
ParameterValue
MountingSurface Mount, Right Angle
Connector typeReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
Contact finishGold
Positions20
Contact finish thickness30.0µin (0.76µm)

Product details

20-Position SFP Receptacle for Board-Edge Cage Mounting

SFP vs SFP+ Compatibility

The 1367073-2 uses the standard 20-position SFP mechanical interface. SFP+ modules share the same physical footprint and edge-connector layout, so this receptacle accepts both SFP and SFP+ transceivers. The difference between SFP and SFP+ is in the electrical signalling rate (up to 4.25 Gbps vs 10 Gbps), not the connector geometry — the receptacle itself does not limit the data rate; the host PCB trace design and the module's compliance determine that.

Solder Termination for SMT Assembly

Solder termination with surface-mount pads suits reflow assembly on standard SMT lines. Tape & Reel packaging feeds directly into a pick-and-place machine; Cut Tape availability covers prototype or low-volume builds without committing to a full reel.

Active Production — No End-of-Life Pressure

No last-time-buy window to manage.

Frequently asked questions

Is 1367073-2 compatible with SFP+ modules?

Yes. The 1367073-2 uses the standard 20-position SFP mechanical interface, which is physically identical to the SFP+ interface. SFP+ modules mate with this receptacle — the data rate capability depends on the host PCB and module, not the connector.

What is the difference between 1367073-2 and 2227302-3?

Both are the same TE SFP receptacle with identical 20-position right-angle SMT design and 30.0µin gold contacts. The 1367073-2 ships in Tape & Reel and Cut Tape; the 2227302-3 ships in Box packaging. Choose based on your assembly line's feeder requirements.
