70-Position SMT Right-Angle PT Receptacle

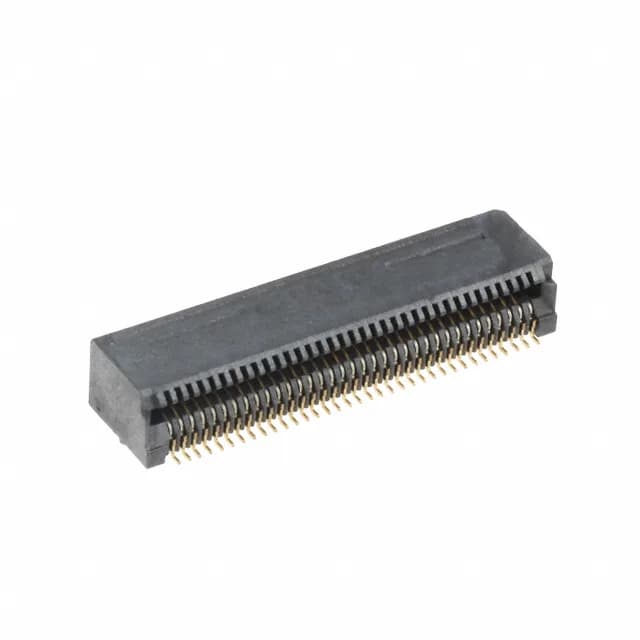

The TE Connectivity 1367337-1 is a 70-position PT series receptacle designed for surface-mount, right-angle attachment to a PCB. The PT designation covers a family of high-density board-to-board interconnects, and this 70-position member is the full-population variant — every contact position is loaded. The 15.0µin gold is a signal-contact specification; it is not sized for high-current power duty. A board guide feature is integrated into the housing. This is a molded alignment post that engages with a corresponding hole in the PCB during pick-and-place, centering the connector before reflow. On a 70-position SMT part, the board guide reduces the risk of skewed placement and tombstoning, particularly on a high-speed assembly line.
Board Layout and Assembly Fit
The Tape & Reel (TR) packaging confirms this part is intended for automated pick-and-place assembly. Cut Tape (CT) is also available for prototype or low-volume builds. The reel quantity is not specified here, but the TR suffix on the order code is the standard reel format for SMT connectors of this size.
