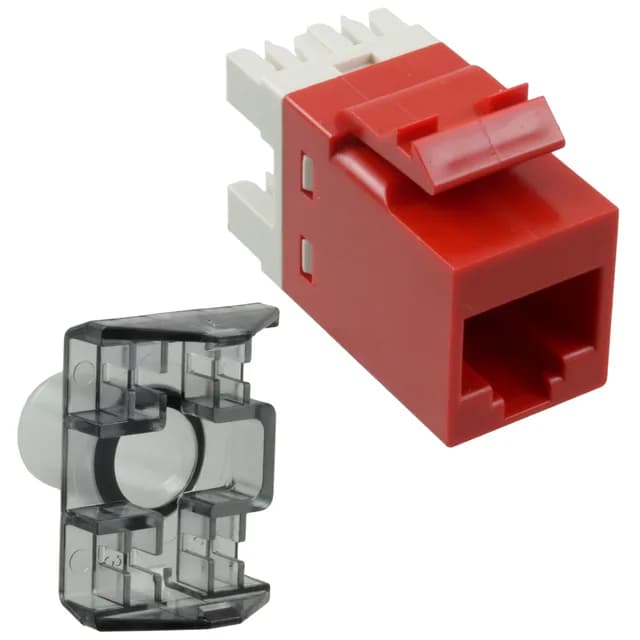

TE Connectivity SL 110Connect modular jack, order code 1375055-7, Cat6 rated, 8p8c (RJ45), IDC pressdown termination, gold-plated beryllium copper contacts, red polycarbonate housing, bulk package.
| Parameter | Value |
|---|---|
| Series | SL 110Connect |
| Exterior type (Adapter end) | Modular Jack 8p8c (RJ45, Ethernet) |
| Interior type (Adapter end) | IDC, Pressdown, Punchdown Block |
| Operating temperature | -10°C ~ 60°C |
| Exterior housing color | Red |
| Exterior contact material | Beryllium Copper |
| Exterior housing material | Polycarbonate (PC) |
| Style | Modular |
| Package | Bulk |
| Ratings | Cat6 |
| Exterior contact finish | Gold |
| Exterior contact finish thickness | 50µin (1.27µm) |
| Interior contact finish thickness | 50µin (1.27µm) |
The 1375055-7 is a Cat6-rated modular jack from the TE Connectivity SL 110Connect series, terminated via IDC pressdown (punchdown block) on the interior side and presenting a standard 8p8c (RJ45) jack on the exterior. Contacts are beryllium copper with 50µin (1.27µm) gold plating on both the exterior and interior finish; the housing is red polycarbonate (PC) rated for -10°C to 60°C operating temperature.
The style is Modular and the series is SL 110Connect.
