TE Connectivity AMP Connectors 1376477-4 — Connector Housings

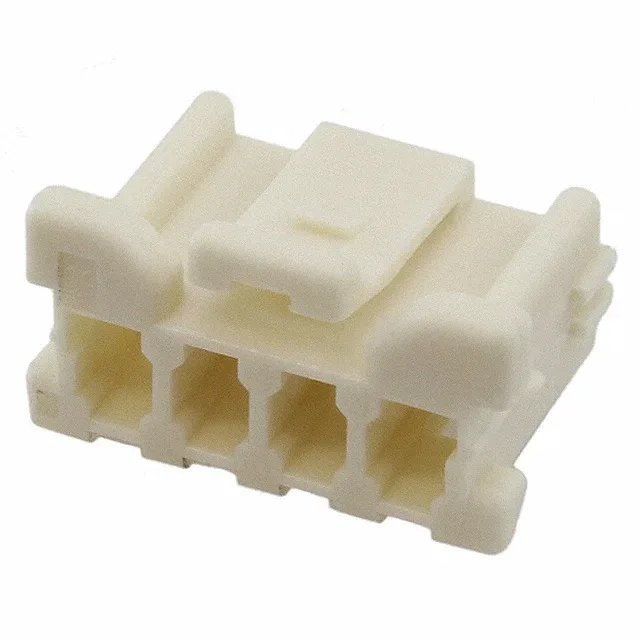

TE 1376477-4 Signal Mate Plug Housing, 4 Pos, 2.50 mm

MPN1376477-4
Active

TE Signal Mate plug housing, 4 positions, 1 row, 0.098" (2.50 mm) pitch, crimp termination, latch lock, free hanging, natural PA66, contacts not included.

$0.3900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSignal Mate
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1376477-4 specifications
ParameterValue
SeriesSignal Mate
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-30°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions4

Product details

The 0.098" (2.50 mm) pitch keeps the footprint compact while leaving enough room for 20–24 AWG terminated contacts.

The 4-position 1376477-4 sits at the lower end of the range — a common count for sensor connectors, small power taps, or signal breakouts where the circuit count matches the position count exactly. Against the 2-position variant, the 1376477-4 adds two cavities without changing the housing width per row, so the board footprint scales linearly with the position count.

The latch lock engages audibly on full mate. Free hanging (in-line) mounting means no panel cutout is needed; the housing simply sits in the harness run.

Frequently asked questions

Are contacts included with 1376477-4?

No — contacts are not included with this housing. The female socket crimp terminals must be ordered separately from the Signal Mate terminal line.

What is the pitch of 1376477-4?

The pitch is 0.098" (2.50 mm), which matches the standard Signal Mate footprint.
