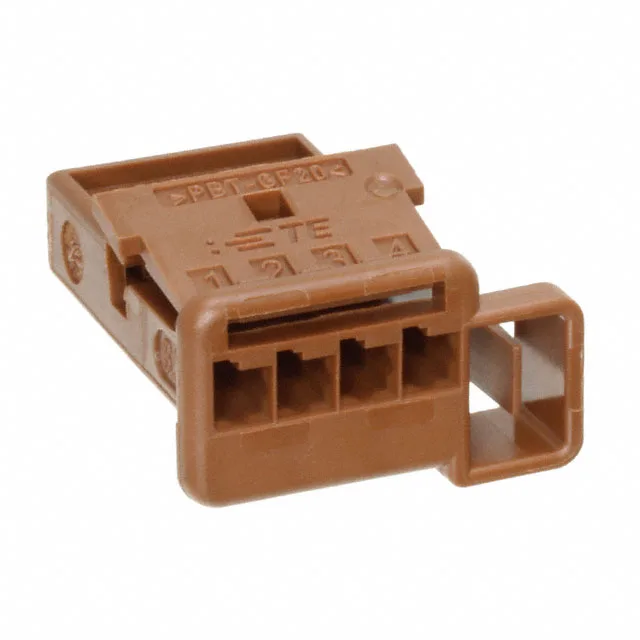

TE Connectivity AMP Connectors Micro Quadlok receptacle housing, 4 positions, 0.100" (2.54mm) pitch, brown PBT shell, latch lock, free-hanging, contacts not included.
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 85°C |
| Color | Brown |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Retainer |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
The 1379029-6: This is the 4-position receptacle housing from the Micro Quadlok series, 0.100" (2.54mm) pitch, in brown. The housing accepts them after crimping, then the latch lock secures the pair against vibration.
No. The note on this part is 'Contacts Not Included'.
0.100" (2.54mm). That's the standard spacing for this Micro Quadlok series, single-row, 4 positions.
Yes — same base part number 1379029, same 4-position, 2.54mm pitch, female socket receptacle. The only difference is color: 1379029-6 is brown; 1379029-5 is gray. They are interchangeable in the same mating half.
