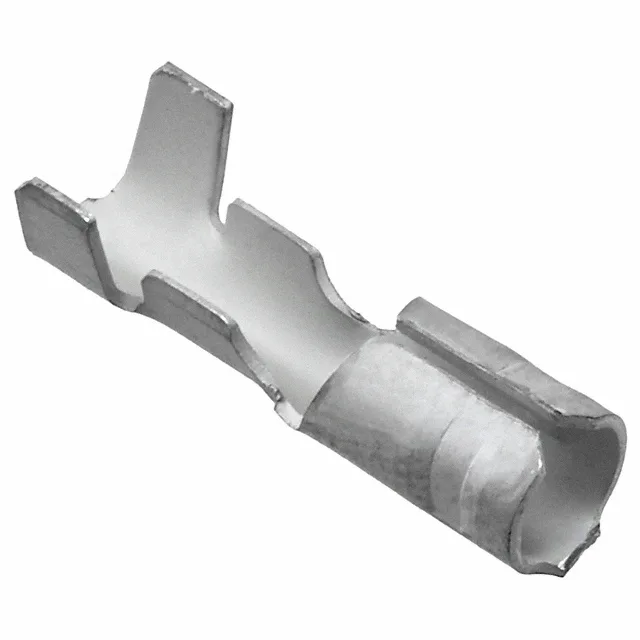

TE Connectivity AMP Connectors crimp socket contact, order code 140712-2, female receptacle, 14-18 AWG, tin-plated brass, non-insulated, crimp termination, 0.250" (6.35 mm) barrel length.
| Parameter | Value |
|---|---|
| Terminal type | Female, Receptacle (Socket) |
| Wire gauge | 14-18 AWG |
| Contact material | Brass |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Contact finish | Tin |
| Length - barrel | 0.250\" (6.35mm) |
| Length - overall | 0.689\" (17.50mm) |
| Diameter - barrel | 0.157\" (4.00mm) |
| Insulation diameter | 0.130\" ~ 0.175\" (3.30mm ~ 4.45mm) |
The 140712-2 is a non-insulated female receptacle contact from TE Connectivity AMP Connectors, accepting 14-18 AWG wire with a crimp termination. The contact is tin-plated brass, with a barrel diameter of 0.157" (4.00 mm) and an overall length of 0.689" (17.50 mm).
The 140712-2 is ROHS3 compliant.
