TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 140805-2, female, 0.197" (5.00mm) tab width, 17-22 AWG, silver-plated brass, free hanging (in-line) crimp termination, non-mating end insulated, red insulation.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 17-22 AWG |
| Color | Red |
| Tab width | 0.197\" (5.00mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Mating End Insulated |
| Tab length | 0.311\" (7.90mm) |
| Termination | Crimp |
| Tab thickness | 0.031\" (0.79mm) |
| Contact finish | Silver |
| Length - overall | 0.850\" (21.59mm) |
| Insulation diameter | 0.130\" (3.30mm) |
The 140805-2 is a female quick-disconnect terminal from TE Connectivity's Faston series, accepting 17-22 AWG wire and mating with 0.197" (5.00mm) wide tabs. The red insulation covers the non-mating end; the silver-plated brass contact is rated for crimp termination in free-hanging (in-line) applications.

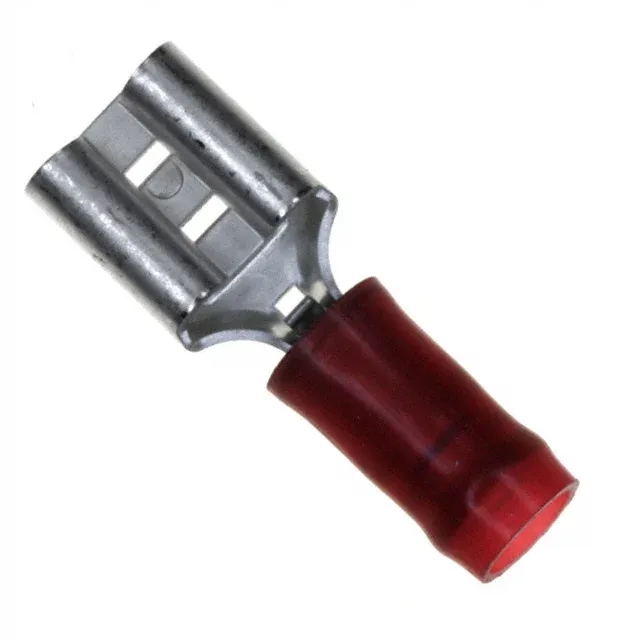

The 140805-2 is a female terminal with red insulation on the non-mating end.
