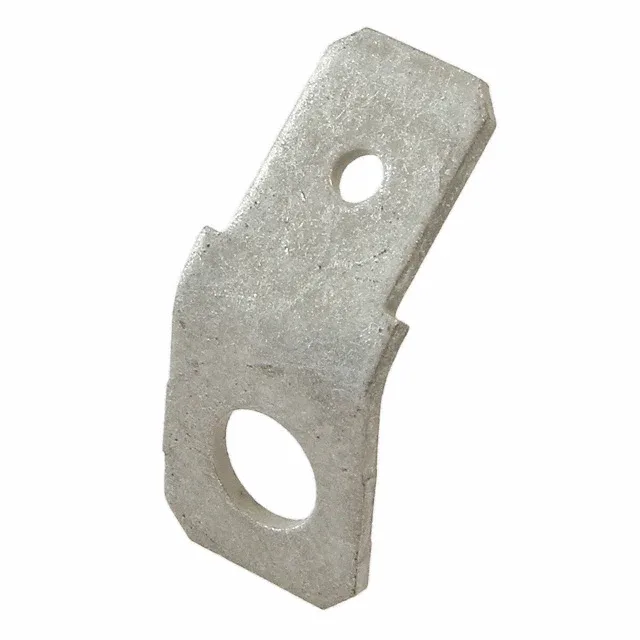

TE Connectivity AMP Faston quick-disconnect terminal, order code 140814-2, male tab, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 45° angled, non-insulated, tin-plated brass, screw/rivet/stud termination, board or chassis mount.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Board, Chassis |
| Terminal type | Angled - 45° |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Bulk |
| Insulation | Non-Insulated |
| Tab length | 0.311\" (7.90mm) |
| Termination | Screw, Rivet, Stud |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
The 140814-2: Non-insulated tin-plated brass construction; termination is by screw, rivet, or stud for board or chassis mounting.
The 140814-2 shares the same 0.250" tab width, 0.032" thickness, and screw/rivet/stud termination as the straight-tab 140814-1 — the 45° angle is the only difference, allowing a right-angle wire exit without a separate bracket.
Both are male Faston tabs with 0.250" tab width, 0.032" thickness, and screw/rivet/stud termination. The 140814-2 has a 45° angled tab; the 140814-1 is straight.
