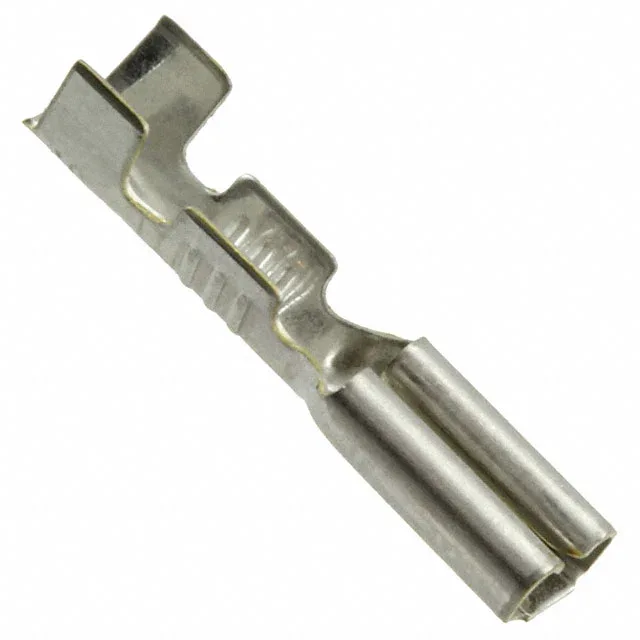

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 140825-2, female, 0.110" (2.79mm) tab width, 17-22 AWG, tin-plated brass, non-insulated, crimp termination, free hanging in-line.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 17-22 AWG |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.250\" (6.35mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.634\" (16.10mm) |
| Insulation diameter | 0.059\" ~ 0.098\" (1.50mm ~ 2.50mm) |
The 140825-2 is the female member of TE's Faston quick-disconnect terminal line, accepting 0.110" (2.79mm) wide male tabs. It crimps onto 17-22 AWG wire, with a tin-plated brass contact body rated for standard-duty electrical connections in free-hanging applications.
The tab width is 0.110" (2.79mm) and the tab thickness is 0.032" (0.81mm).
The 140825-2 accepts 17-22 AWG wire, with an insulation diameter range of 0.059" to 0.098" (1.50mm to 2.50mm).
