TE Connectivity AMP Connectors 1408496-1

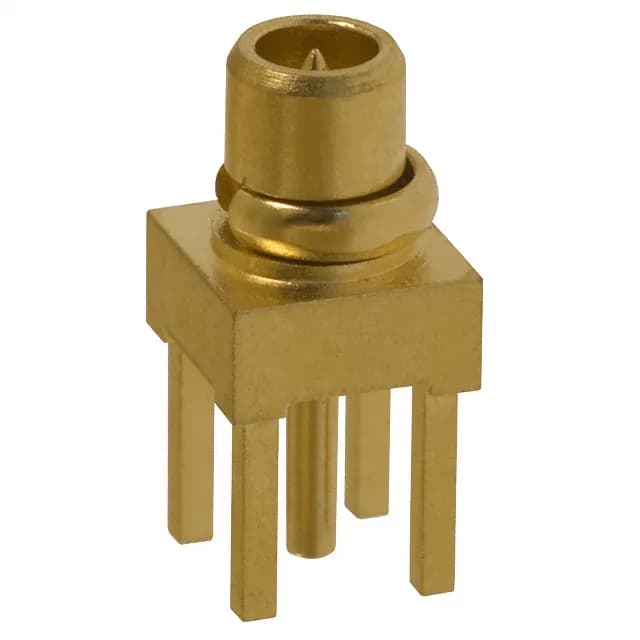

TE Connectivity 1408496-1 MMCX Plug, 50 Ohm, 6 GHz, Obsolete

MPN 1408496-1
Obsolete

TE Connectivity MMCX plug, male pin, 50 Ohms, 6 GHz, through-hole solder termination, gold body and center contact, snap-on fastening, 1 port, bulk.

$9.6400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1408496-1 specifications
ParameterValue
MountingThrough Hole
Connector typePlug, Male Pin
Fastening typeSnap-On
Voltage rating170 V
Frequency - max6 GHz
Operating temperature-55°C ~ 155°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Impedance50 Ohms
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

What this MMCX plug does in the RF path

Why the 500-cycle rating and gold plating matter

500 mating cycles is a high reconnect duty for a snap-on coax connector — the gold-on-gold interface (body finish and center contact both gold) resists wear and oxidation through those cycles. For a bench-test cable or a module that gets swapped during calibration, that cycle life means the connector stays within spec without replacing the PCB-mounted half. The 170 V voltage rating and -55°C to 155°C operating range cover the thermal envelope of outdoor telecom and industrial RF gear.

The 1408496-1 is listed as Obsolete by TE Connectivity. No official successor order code is on record. There is no documented cross-reference or pin-compatible direct replacement from TE; any substitution requires verifying the MMCX interface dimensions and PCB footprint against the application.
