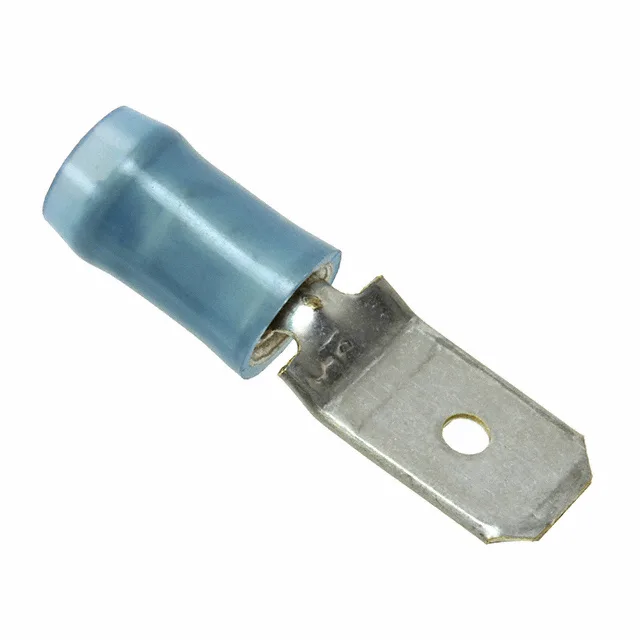

TE Connectivity AMP Connectors Faston, PIDG quick-disconnect tab, order code 140971-2, male, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 13-17 AWG, tin-plated brass, crimp termination, non-mating end insulated, blue, bulk.
| Parameter | Value |
|---|---|
| Series | Faston, PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 13-17 AWG |
| Color | Blue |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Non-Mating End Insulated |
| Tab length | 0.370\" (9.40mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.925\" (23.50mm) |
| Insulation diameter | 0.154\" (3.91mm) |
The 140971-2 is a male quick-disconnect tab from the Faston, PIDG series, accepting 13-17 AWG wire with a crimp termination — the serrated termination bites into the conductor strands for a gas-tight joint that holds up under vibration. Non-mating end insulation in blue covers the crimp barrel and part of the wire, so the exposed metal is only the 0.250" (6.35mm) tab that mates with the receptacle.
The insulation on the non-mating end is blue.
RoHS compliant per the manufacturer's specification. No UL, IEC, or REACH documentation is listed in the available product data.
