TE Connectivity AMP Connectors 141013-2 — Quick-Disconnect Terminals

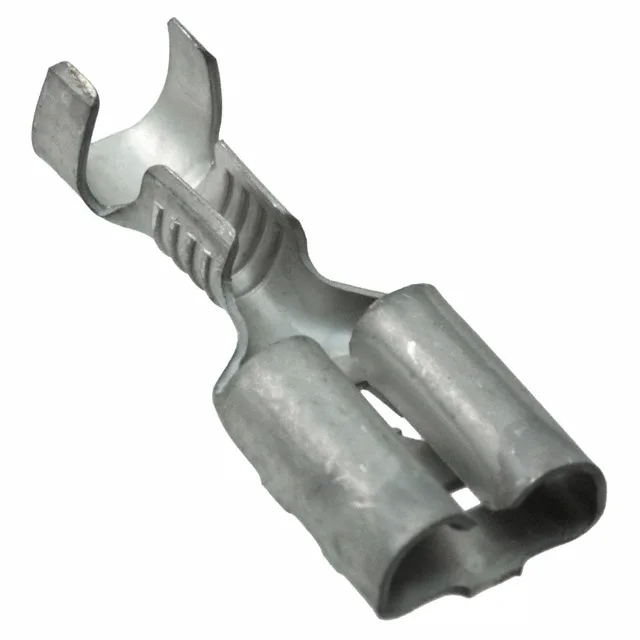

TE Fastin-Faston 141013-2 Quick-Disconnect Terminal

MPN141013-2
Active

TE Connectivity AMP Connectors Fastin-Faston quick-disconnect terminal, order code 141013-2, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, tin-plated brass contact, non-insulated, crimp termination, free hanging (in-line) mounting.

$0.4600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFastin-Faston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

141013-2 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageBulk
InsulationNon-Insulated
Tab length0.305\" (7.75mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.753\" (19.13mm)
Insulation diameter0.122\" ~ 0.157\" (3.10mm ~ 3.99mm)

Product details

0.250" tab, non-insulated, crimp-on

The 141013-2: The brass contact is tin-plated and terminated by crimp, with an overall length of 0.753" (19.13mm). It accepts insulation diameters from 0.122" to 0.157" (3.10mm to 3.99mm).

Same tab, different wire range

The 141013-2 shares the 0.250" tab width and 0.032" tab thickness with the 170108-4 and 5-160667-2. The 170108-4 accepts 14-18 AWG with an insulation diameter up to 0.161" (4.09mm), while the 5-160667-2 accepts 15.5-20 AWG with a smaller insulation range of 0.091" to 0.130" (2.31mm to 3.30mm). Pick the terminal by the wire gauge and insulation OD on the harness.
