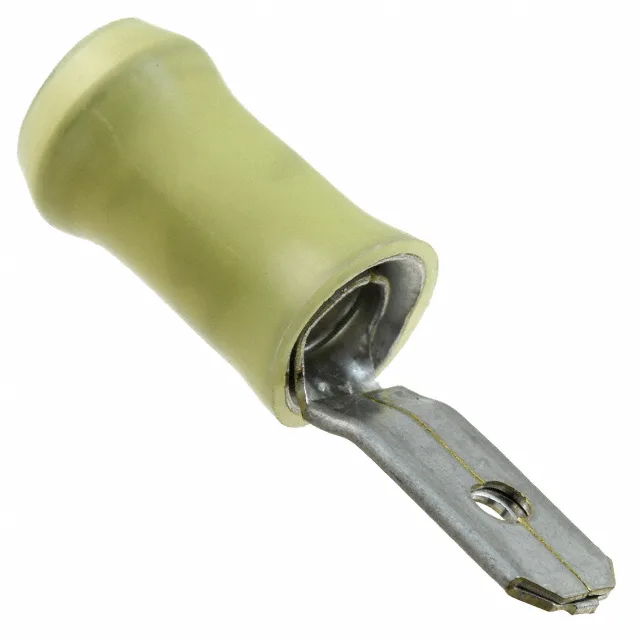

TE Connectivity AMP Connectors Faston quick-disconnect tab, order code 141085-2, male, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 10-11.5 AWG, tin-plated brass, crimp termination, free hanging, non-mating end insulated, yellow.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 10-11.5 AWG |
| Color | Yellow |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Non-Mating End Insulated |
| Tab length | 0.370\" (9.40mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 1.102\" (27.99mm) |
| Insulation diameter | 0.224\" (5.69mm) |
The 141085-2 is a male quick-disconnect tab in TE's Faston series, accepting 10-11.5 AWG wire with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The non-mating end is insulated with a yellow sleeve; the contact is tin-plated brass with a serrated crimp barrel for wire grip.
The 141085-2 is RoHS Compliant per the manufacturer.
No — the 141085-2 is a male tab (0.250" width, 10-11.5 AWG) while the 1377175-8 is a female receptacle (0.312" width, 14-16 AWG); they differ in gender, tab width, and wire range, so they are not direct drop-in replacements.
