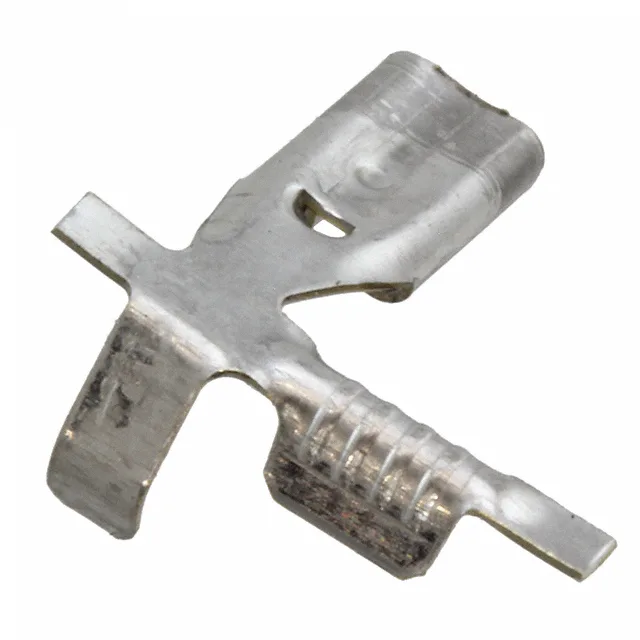

TE Connectivity AMP Faston flag receptacle, order code 141352-2, female, 0.110" (2.79mm) tab width, 0.020" (0.51mm) tab thickness, 18-22 AWG, tin-plated brass, non-insulated, free hanging right-angle, crimp termination.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 18-22 AWG |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Insulation diameter | 0.063\" ~ 0.098\" (1.60mm ~ 2.50mm) |
The 141352-2 is a non-insulated female flag receptacle in TE's Faston series, accepting 18-22 AWG wire with a 0.110" (2.79mm) tab width and 0.020" (0.51mm) tab thickness. The 90° angled crimp barrel routes the wire parallel to the tab plane, suiting tight spaces where a straight receptacle would exceed the clearance envelope. Tin-plated brass contact material resists corrosion in moderate environments.
The 141352-2 accepts 18-22 AWG wire and mates with a 0.110" (2.79mm) wide tab that is 0.020" (0.51mm) thick.
