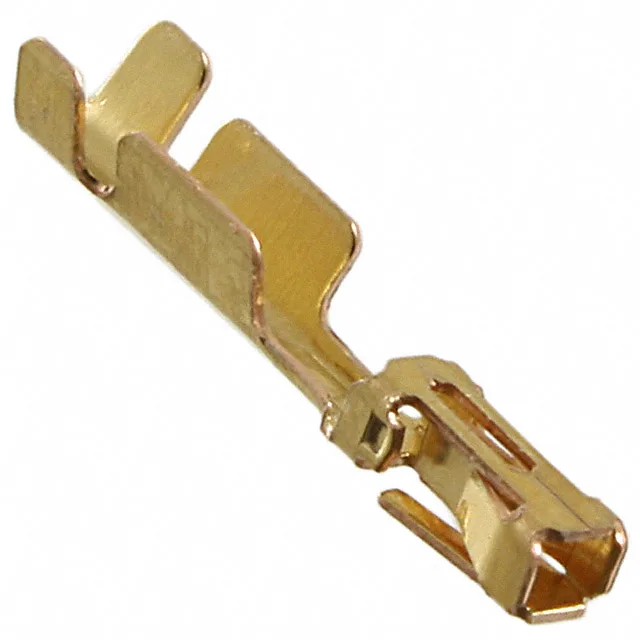

TE Connectivity AMP Connectors AMPMODU Mod IV crimp socket, order code 141708-1, socket contact, 20-26 AWG, gold 30.0µin (0.76µm) plating, crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Wire gauge | 20-26 AWG |
| Package | Bulk |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
The 141708-1 is a crimp socket within the TE AMPMODU Mod IV series, accepting 20-26 AWG wire and terminating with a standard crimp tool.
Within the AMPMODU Mod IV family the 141708-1 (20-26 AWG, gold) differs from the 1-1326032-0 (16 AWG, tin) and 929989-8 (17-20 AWG, tin) — wire gauge and plating grade are the selection drivers, not the crimp interface or housing fit.
The 141708-1 is an active, in-production part. Pricing and stock are confirmed per RFQ against the BOM quantity; no stock-holding claim is made on this page.
No — the 141708-1 accepts 20-26 AWG wire, while the 1-1326032-0 accepts 16 AWG. The wire gauge range does not overlap, so a direct drop-in without rewiring is not supported.
