TE Connectivity AMP Connectors 141878-2 — Quick-Disconnect Terminals

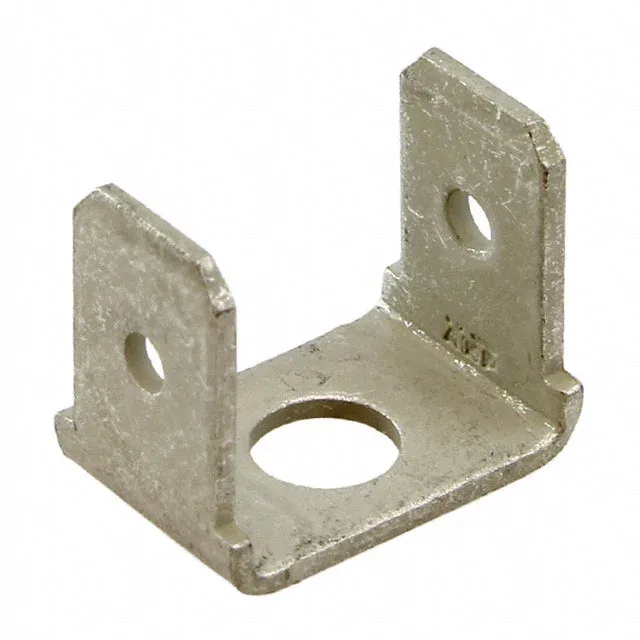

141878-2 TE Faston Tab 0.250" Non-Insulated Male

MPN141878-2
Active

TE Connectivity AMP Faston quick-disconnect tab, order code 141878-2, male, 0.250" (6.35mm) tab width, 0.311" (7.90mm) tab length, 0.032" (0.81mm) tab thickness, tin-plated brass, screw/rivet/stud termination, board or chassis mount.

$0.3900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

141878-2 specifications
ParameterValue
SeriesFaston
MountingBoard, Chassis
Terminal typeAngled - 90°
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderMale
PackageBulk
Features2 Tabs
InsulationNon-Insulated
Tab length0.311\" (7.90mm)
TerminationScrew, Rivet, Stud
Tab thickness0.032\" (0.81mm)
Contact finishTin

Product details

0.250" tab, screw termination

The 141878-2 is a male Faston quick-disconnect tab from TE Connectivity AMP Connectors, with a 0.250" (6.35mm) tab width and 0.311" (7.90mm) tab length. Termination is via screw, rivet, or stud, and the tab is non-insulated with a 0.032" (0.81mm) thickness.

Mounting and plating

Mounts to board or chassis; the 90° angled tab orientation suits space-constrained layouts where a straight tab would interfere. Tin-plated brass contact finish provides corrosion resistance for general-purpose power and signal connections.

Frequently asked questions

What is the tab width and thickness of 141878-2?

Tab width is 0.250" (6.35mm) and tab thickness is 0.032" (0.81mm).
