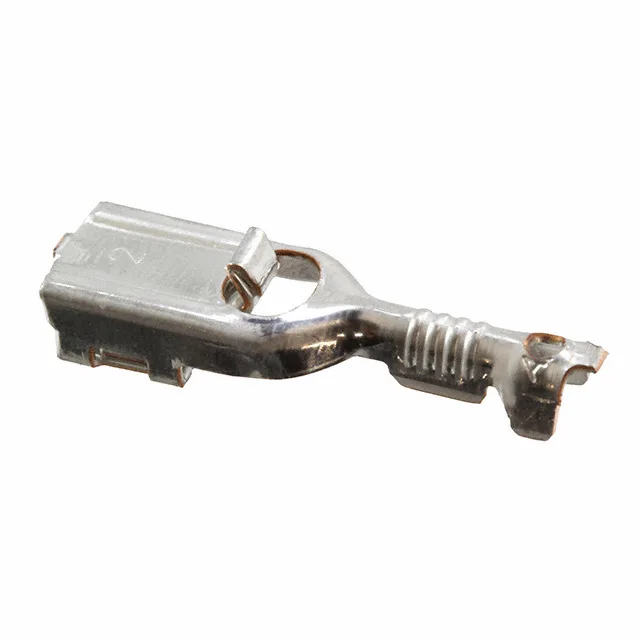

TE Connectivity AMP Connectors Mark III female quick-disconnect terminal, order code 142685-3, 0.197" (5.00mm) tab width, 0.032" (0.81mm) tab thickness, 17-20 AWG, tin-plated phosphor bronze, non-insulated, crimp termination, free hanging (in-line).
| Parameter | Value |
|---|---|
| Series | Mark III |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 17-20 AWG |
| Tab width | 0.197\" (5.00mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.240\" (6.10mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.827\" (21.00mm) |
| Insulation diameter | 0.051\" ~ 0.079\" (1.30mm ~ 2.00mm) |
The 142685-3 is a non-insulated female quick-disconnect terminal from the TE Mark III series, accepting 17-20 AWG wire with a 0.197" (5.00mm) tab width and 0.032" (0.81mm) tab thickness. The tin-plated phosphor bronze contact is rated for crimp termination in free-hanging applications; the insulation diameter range is 0.051" to 0.079" (1.30mm to 2.00mm).
The 142685-3 is ROHS3 Compliant per the manufacturer's declaration.
No — the 142685-3 has a 0.197" tab width vs 0.248" for the 1-1659250-0; the mating tab must match the terminal width.
