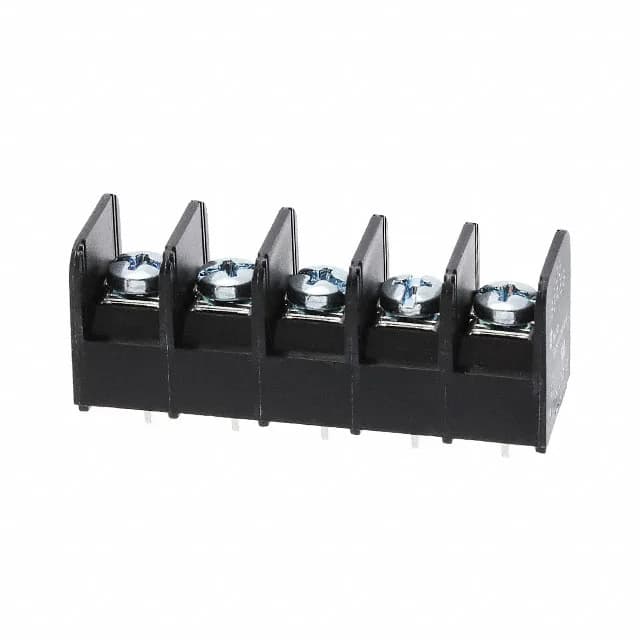

TE Connectivity JC6, Buchanan barrier strip, 5 circuits, 0.375" (9.53 mm) pitch, 20 A, 300 V, through hole, PC pin termination, dual-wall barrier, UL94 V-0, black thermoplastic.
| Parameter | Value |
|---|---|
| Series | JC6, Buchanan |
| Barrier type | 2 Wall (Dual) |
| Mounting | Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 20A |
| Wire gauge | 12-22 AWG |
| Terminal screw finish | Zinc, Clear Chromate |
| Number of wire entries | 5 |
| Terminal screw material | Steel |
| Operating temperature | 105°C |
| Color | Black |
| Parameter | Value |
|---|---|
| Material - insulation | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.375\" (9.53mm) |
| Package | Bulk |
| Rows | 1 |
| Top termination | Screws |
| Bottom termination | PC Pin |
| Number of circuits | 5 |
The 0.375" (9.53 mm) pitch gives each terminal enough physical separation to land 12 AWG wire without crowding adjacent positions — useful in a control cabinet where you need to terminate branch-circuit power wiring next to smaller signal conductors. The dual-wall barrier isolates each screw terminal from its neighbour, so a screwdriver slip during wiring doesn't bridge live circuits.
The pitch is 0.375" (9.53 mm), measured centre-to-centre between adjacent terminals.
The terminal accepts 12-22 AWG wire, covering heavy power conductors down to smaller signal wires.
Yes, it is ROHS3 compliant.
