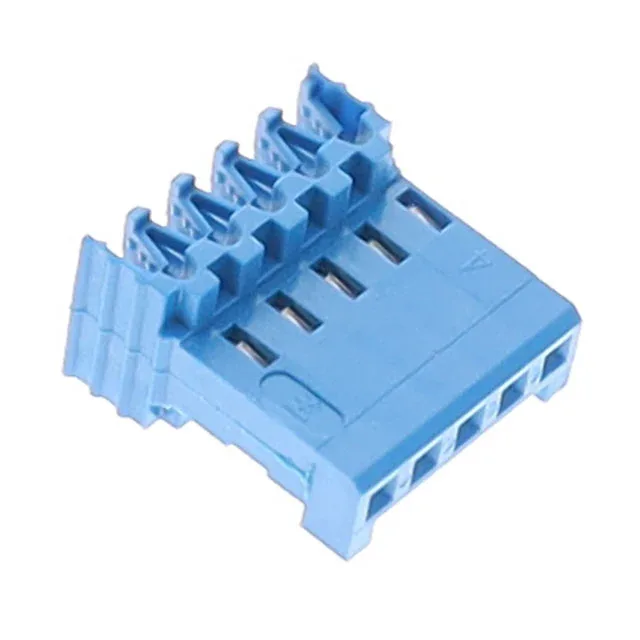

144271-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 144271-5 HE13/HE14 IDC Plug, 5 Pos

MPN144271-5
Active

TE Connectivity HE13/HE14 series, Plug, 5 Positions, 1 Row, 0.100" (2.54mm) Pitch, IDC Termination, Tin Contacts, Free Hanging (In-Line), Right Angle, Detent Lock.

$0.7000Ref. price · indicative, final on quote
144271-5 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

144271-5 Technical Specifications
ParameterValue
SeriesHE13/HE14
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug
Fastening typeDetent Lock
Wire gauge26 AWG
Cable terminationIDC
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions5

Product details

IDC Plug for 26 AWG Discrete Wire

The TE Connectivity 144271-5 is a 5-position IDC plug from the HE13/HE14 series, terminated to 26 AWG discrete wire via insulation displacement. Tin-plated female sockets keep per-contact cost down for applications that don't need frequent reconnection — think internal equipment wiring where the connector mates once and stays. Mounting is free-hanging (in-line) or right-angle, which means it can plug into a board-mounted header either straight on or at 90° to the PCB, depending on cable routing. The feed-through feature allows daisy-chaining multiple plugs on the same wire run.

Frequently asked questions

What is the pitch of the 144271-5?

The 144271-5 uses a 0.100" (2.54mm) pitch, standard for HE13/HE14 series IDC connectors.
