The TE Connectivity 1445048-2 is a 2-circuit plug housing from the Micro MATE-N-LOK series, a 3.00mm-pitch wire-to-wire or wire-to-board interconnect family. The single-row layout and locking ramp make it a straightforward choice for a low-circuit-count harness that needs a positive-lock connection in a tight space. The 3.00mm pitch gives enough room between circuits for easy hand-crimping and visual inspection of the terminal seat, which matters when you're building a two-wire power or signal run and don't want to chase a bad crimp.

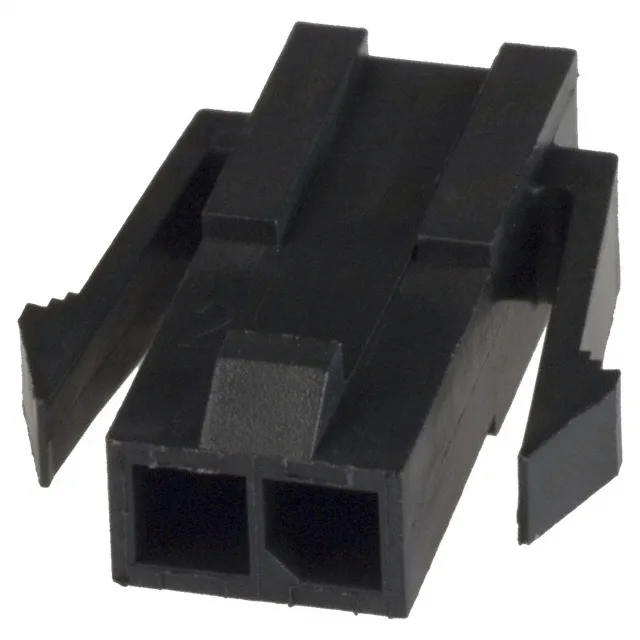

TE Micro MATE-N-LOK 1445048-2, 2-Pin Plug Housing 3.00mm
MPN1445048-2
Active
TE Connectivity Micro MATE-N-LOK plug housing, 1445048-2, 2 positions, 1 row, 3.00mm pitch, panel mount snap-in, crimp termination, locking ramp, black PA66 housing, -40°C to 105°C.
$0.3100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Panel Mount, Snap-In |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.118\" (3.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
Product details
Frequently asked questions
What contacts fit 1445048-2?
The 1445048-2 accepts male pin crimp terminals from the TE Micro MATE-N-LOK family. The housing is a plug body; the mating receptacle half uses female socket terminals. Order the crimp contacts separately — they are not included with the housing.
