TE Connectivity AMP Connectors 1445048-5 — Connector Housings

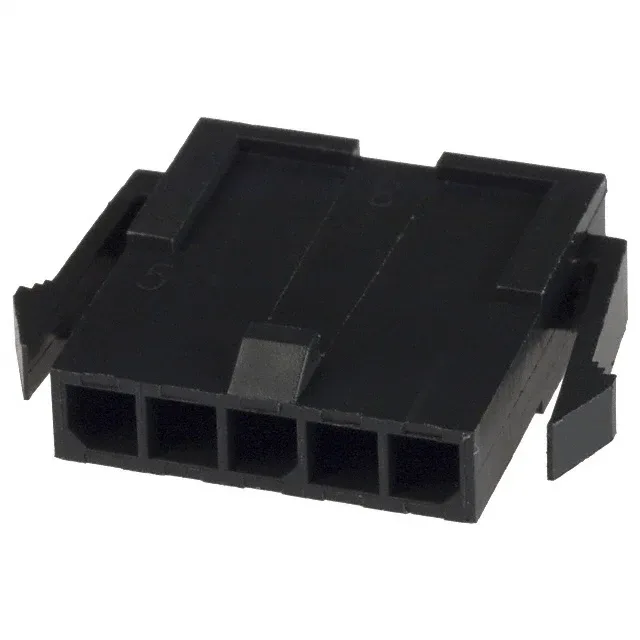

TE 1445048-5 Micro MATE-N-LOK Plug Housing, 5 Pos, 3.00mm

MPN1445048-5
Active

TE Connectivity Micro MATE-N-LOK, 1445048-5, Plug Housing, 5 Position, 3.00mm Pitch, 1 Row, Panel Mount Snap-In, Crimp, Locking Ramp, Black PA66, -40°C to 105°C.

$0.4500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1445048-5 specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingPanel Mount, Snap-In
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.118\" (3.00mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions5

Product details

5-Circuit Panel-Mount Plug for Harness Builds

The crimp termination allows field-assembly of custom wire lengths, common in harness shops where the wire gauge and seal requirements vary per build.

Mates with Micro MATE-N-LOK Headers

The 1445048-5 mates with the corresponding Micro MATE-N-LOK header (male pin) of the same 5-circuit, 3.00 mm pitch layout. The locking ramp on the plug engages the header latch for audible and tactile confirmation of full mate — a feature that reduces field rework from partial connection in high-vibration environments.

Frequently asked questions

What contacts are required for 1445048-5?

The 1445048-5 is a plug housing that requires male pin crimp terminals from the Micro MATE-N-LOK contact family. Contacts are not included with this housing and must be ordered separately.

What mating header works with 1445048-5?

The 1445048-5 mates with a 5-circuit, 3.00 mm pitch Micro MATE-N-LOK header that carries male pin contacts. The locking ramp on the plug engages the header latch for a vibration-resistant connection.
