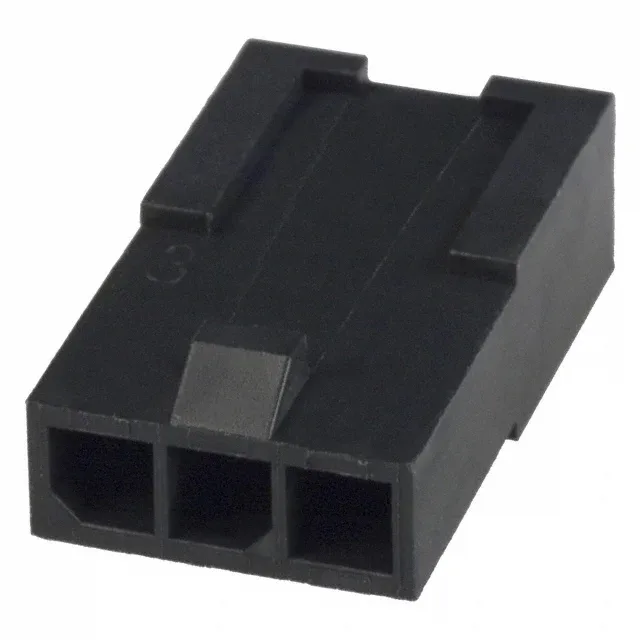

3-Position Single-Row Plug Housing for the Micro MATE-N-LOK Series
A 3.00 mm header with three pins is the mate, and the pitch also dictates the minimum PCB land pattern if you're designing a custom board. No secondary lock is built into the housing, so the ramp alone carries the cable strain — make sure the harness is tied off within 100 mm of the connector to avoid levering the latch open.
Contacts Not Included — Order the Correct Crimp Terminal Separately
TE's standard terminal for this housing accepts 20-24 AWG wire and is tin-plated for general-purpose use; a gold-plated version is available for higher mating-cycle applications. If you're building a harness, budget for the terminals and a hand crimp tool with the correct die — the contact retention in the housing depends on the terminal's lance seating correctly.
The 1445049-3 is listed as Active on TE's lifecycle record with ROHS3 compliance.
