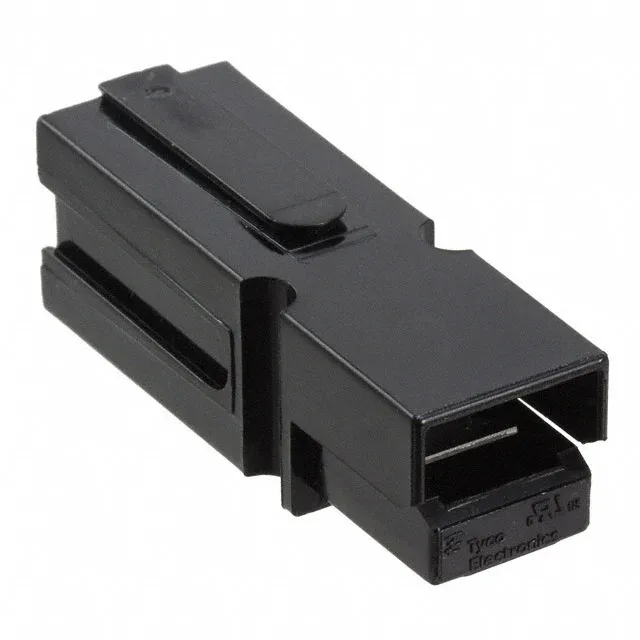

1445715-2 — TE Connectivity AMP Connectors product photo

TE 1445715-2 Power Series 75 Housing, 1 Pos Black

MPN1445715-2
Active

TE Connectivity Power Series 75 housing, 1445715-2, 1 position, 1 row, non-gendered, black polycarbonate, free-hanging in-line, spring retention, crimp termination, stackable, bulk.

$1.6400Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1445715-2 Technical Specifications
ParameterValue
SeriesPower Series 75
GenderNon-Gendered
Mounting typeFree Hanging (In-Line)
Connector typeNon-Gendered
Fastening typeSpring Retention
ColorBlack
Material - insulationPolycarbonate (PC)
NoteContacts Not Included
PackageBulk
FeaturesStackable
Rows1
Contact terminationCrimp
Positions1

Product details

Spring retention holds the mating pair together; there is no secondary latch or screw lock, so the connection relies on the spring force for engagement. This is a building-block housing: one position per body. The stackable feature means you can gang multiple 1445715-2 housings side-by-side to create a multi-way connector assembly from single-position modules. That matters when your harness needs a custom position count that no fixed multi-position housing covers — you snap together the exact number of positions you need.

You need to source the Power Series 75 crimp terminals separately. TE's Power Series 75 uses non-gendered contacts, meaning the same terminal goes into both the plug and receptacle housings. No terminal part number is listed on this housing record, so confirm the contact order code from the Power Series 75 terminal datasheet before committing the BOM line.

Stackable Design for Multi-Position Harnesses

The stackable feature is the key differentiator of this housing versus a fixed multi-position body. Each 1445715-2 is a single-position module; you interlock them side-by-side to build a connector block with as many circuits as your harness needs. The spring retention on each module engages with the mating half independently. This approach gives you flexibility in position count but means each module is a separate part to handle on the assembly line — not a single pick-and-place item.

Frequently asked questions

Is 1445715-2 stackable?

Yes, the housing is designed as a stackable module. Multiple 1445715-2 housings can be ganged side-by-side to create a multi-position connector assembly from single-position bodies.
