Single-Position Power Housing for Inline Splice or Pass-Through

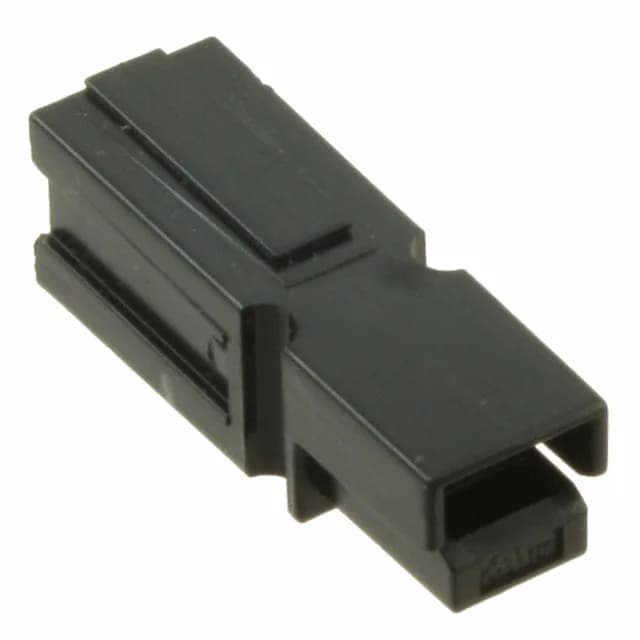

The TE Connectivity 1445957-2 is a 1-position, non-gendered housing from the Power Series 15/30/45 family, designed for free-hanging inline wire-to-wire or wire-to-device interconnects where a single circuit needs a rugged, stackable enclosure. The housing accepts a non-gendered crimp terminal (ordered separately) and secures it with spring retention — no secondary locking clip required. The black polycarbonate (PC) insulation provides UL94 V-0 flame rating typical for this series, suited for industrial control cabinets, power distribution junctions, and battery interconnect harnesses where space per circuit is tight.
Stackable Modularity — Build Multi-Position Assemblies from Single Modules
The housing is marked as stackable, meaning multiple 1445957-2 units can be ganged side-by-side to create a multi-position connector block without a dedicated multi-circuit housing mold. This is useful for prototyping, low-volume builds, or when the circuit count does not match an off-the-shelf multi-position housing. Each position remains independently serviceable — a single terminal can be removed without disturbing adjacent circuits.
Crimp Termination — Field-Terminable, No Soldering
Termination is crimp-only. For a complete mated pair, two housings and two terminals are needed. The spring retention holds the terminal in place once inserted; no additional fasteners or tools beyond the crimp tool are required for assembly.
