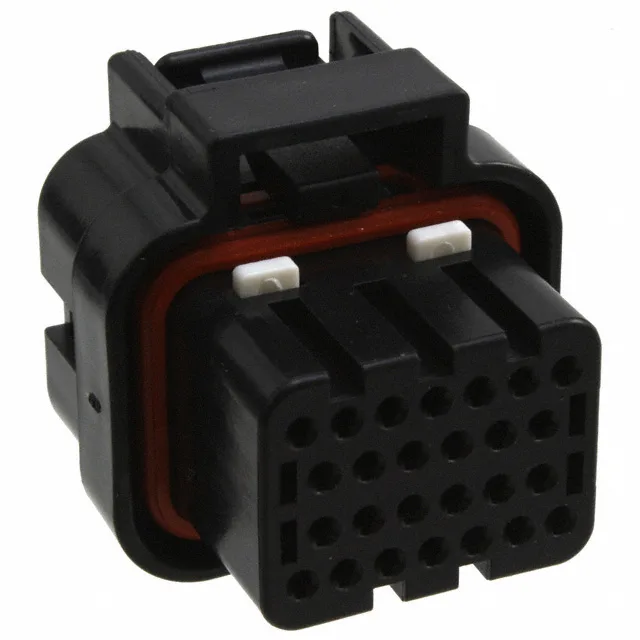

TE Superseal plug housing, 1473416-1, 26-position 4-row, latch lock, free-hanging, PBT glass-filled, -40°C to 125°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | Superseal |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 125°C |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Package | Tube |
| Rows | 4 |
| Contact termination | Crimp |
| Positions | 26 |
The 1473416-1 is a 26-position, 4-row Superseal plug housing from TE Connectivity AMP Connectors. The latch lock fastening keeps the plug mated under vibration, which matters in engine compartments and industrial machinery where a half-turn loose is a dropout.
The 4-row, 26-position layout mates with a corresponding Superseal receptacle.
No — the contacts are not included.
The housing has 26 positions arranged in 4 rows. The exact pin numbering follows the Superseal standard — refer to the product drawing for the cavity layout.
