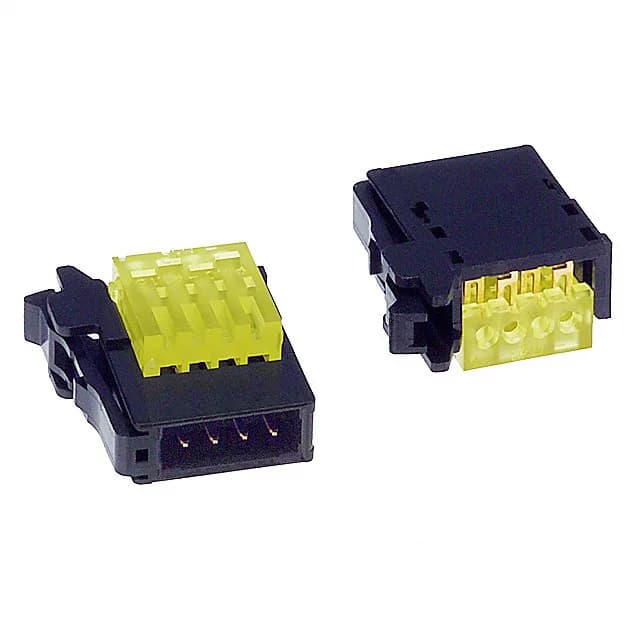

TE Connectivity RITS series plug, 4 positions, 0.079" (2.00mm) pitch, IDC termination, male pin contacts, gold plating, free-hanging, latch lock.
| Parameter | Value |
|---|---|
| Series | RITS |
| Wire type | Discrete |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Cable termination | IDC |
| Color | Black |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 4 |
| Contact finish thickness | 8.00µin (0.203µm) |
The TE 1473562-4 is a 4-position plug from the RITS series, terminated via IDC for discrete wire — each conductor is pierced on insertion without a separate crimp step.
The IDC termination accepts discrete wire (not ribbon cable), so each conductor is loaded individually and the insulation is displaced by the contact tines.
No official second-source or successor is on record.
The pitch is 0.079" (2.00 mm), which sets the board footprint and the mating half spacing.
It mates with a 4-position, 2.00 mm pitch RITS receptacle housing with latch lock and IDC termination for discrete wire.
