TE Connectivity AMP Connectors 150699-2 — Quick-Disconnect Terminals

150699-2 TE Faston Quick-Disconnect Terminal, 0.187" Tab

MPN150699-2
Active

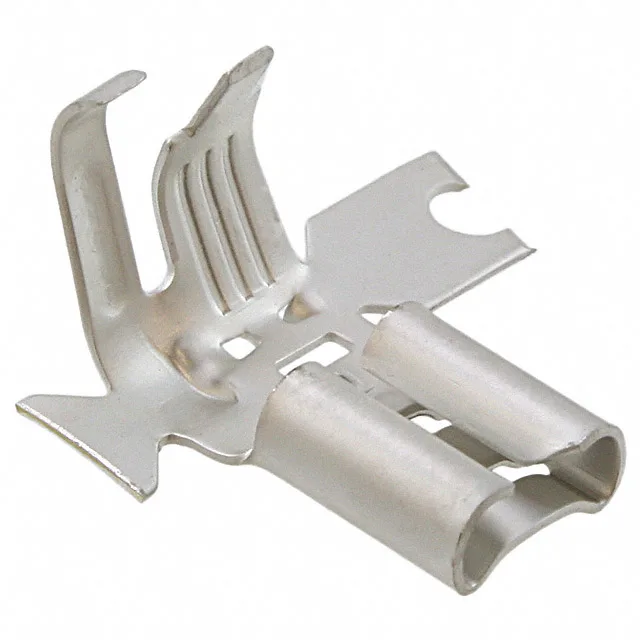

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 150699-2, female, 0.187" (4.75mm) tab width, 16-20 AWG, tin-plated brass, crimp termination, free hanging right-angle flag.

$0.1800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 150699-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFaston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

150699-2 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge16-20 AWG
Tab width0.187\" (4.75mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.250\" (6.35mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Insulation diameter0.110\" ~ 0.170\" (2.79mm ~ 4.32mm)

Product details

Flag-style tab terminal for 0.187" tabs

The 150699-2 is a female quick-disconnect terminal from the TE Faston series, accepting 0.187" (4.75mm) tab width and 0.032" (0.81mm) tab thickness. Crimp termination on 16-20 AWG wire; the tin-plated brass contact suits moderate-cycle environments where gold is not required.

Same-series flag terminals: tab width and wire range

The 150699-2 (0.187" tab, 16-20 AWG) sits alongside the 1-1627194-4 (0.250" tab, 15-18 AWG) and the 1377175-8 (0.312" tab, 14-16 AWG, PIDG insulated) — tab width and wire gauge are the selection axes; the crimp termination and tin finish are shared across the series.

Frequently asked questions

What compliance documentation is available for 150699-2?

The 150699-2 is ROHS3 Compliant per the manufacturer listing.
