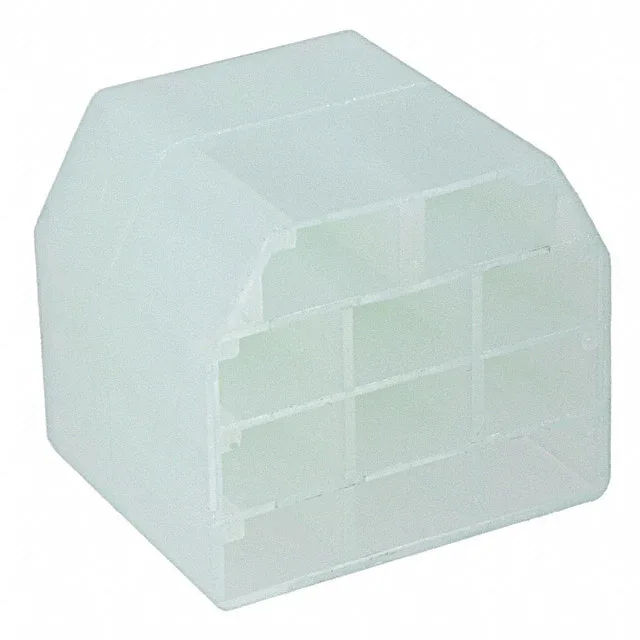

TE Connectivity AMP Connectors Fastin-Faston housing, order code 151325-1, 11 positions, 0.250" (6.35mm) terminal size, female receptacle, natural nylon, free hanging (in-line), bulk package.
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Quick Connect, Disconnect |
| Terminal size | 0.250\" (6.35mm) |
| Color | Natural |
| Material | Nylon |
| Note | Contacts Not Included |
| Style | Housing |
| Gender | Female, Receptacle |
| Package | Bulk |
| Stacking direction | Top to Bottom and Side to Side |
| Positions | 11 |
| For use with (Related products) | 0.250\" (6.35mm) Quick Connects |
The 151325-1 is the 11-position member of TE's Fastin-Faston receptacle housing line, accepting 0.250" (6.35mm) quick-connect terminals. The natural nylon body mounts free hanging (in-line) and stacks top-to-bottom and side-to-side for multi-circuit layouts.
No — the housing ships with contacts not included. The user supplies 0.250" (6.35mm) quick-connect terminals separately.
Natural nylon. The natural color is the as-molded nylon appearance.
