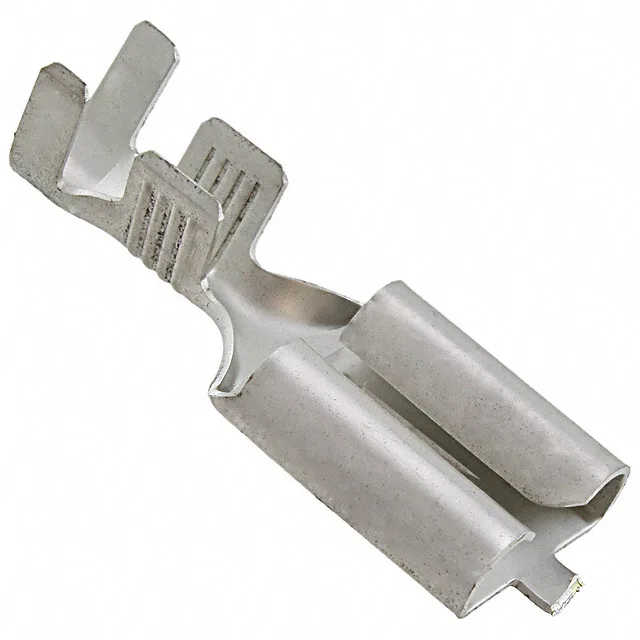

TE Connectivity AMP Connectors 151667-2 — Quick-Disconnect Terminals

TE 151667-2 Fastin-Faston Female Quick-Disconnect 0.375"

MPN151667-2
Active

TE Connectivity AMP Connectors Fastin-Faston quick-disconnect terminal, order code 151667-2, female, 0.375" (9.53 mm) tab width, 10-11.5 AWG, tin-plated brass, crimp termination, free hanging, non-insulated.

$0.5000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 151667-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFastin-Faston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

151667-2 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge10-11.5 AWG
Tab width0.375\" (9.53mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.470\" (11.94mm)
TerminationCrimp
Tab thickness0.048\" (1.22mm)
Contact finishTin
Length - overall1.040\" (26.42mm)
Insulation diameter0.160\" ~ 0.210\" (4.06mm ~ 5.33mm)

Product details

Crimp termination, 0.375" tab width

The 151667-2 is the 0.375" (9.53 mm) tab-width female member of TE's Fastin-Faston quick-disconnect terminal line, accepting 10-11.5 AWG wire with a crimp termination. Tin-plated brass contact, non-insulated, free-hanging inline mount — mates with matching 0.375" male tabs.

Tab width selection across Fastin-Faston

Within the Fastin-Faston series, the 151667-2's 0.375" (9.53 mm) tab width sits between the 0.250" (6.35 mm) width of the 160914-2 and the same 0.375" width of the 280756-2 — the 280756-2 carries a longer overall length (1.102" vs 1.040") and a slightly different insulation diameter range.
