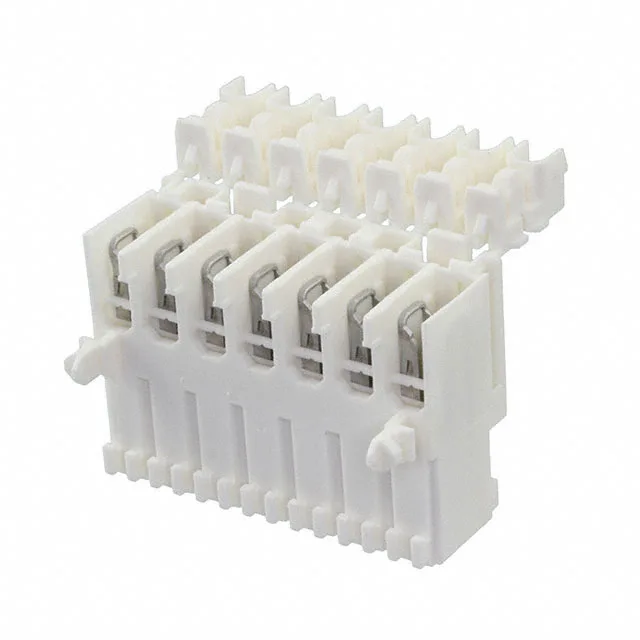

5.00 mm Pitch IDC Receptacle for Discrete Wire Harnesses
It terminates discrete wire via IDC (Insulation Displacement Contact) and uses tin-plated blade pin contacts. The 0.197" (5.00 mm) pitch provides enough spacing for routing individual conductors in a harness without crowding the termination point. A latch lock secures the mated pair, making it suitable for applications where vibration could otherwise separate an unlatched connector.
The connector is free-hanging (in-line), designed for panel-to-harness or harness-to-harness mating where the receptacle is not board-mounted. The dual wire exit feature allows the cable to exit in either direction, simplifying routing in tight enclosures.
Position Count and Series Context
At 7 positions, this receptacle fills a specific circuit count between the 4-position 1-1703095-1 and the 17-position 1-226733-4 in the broader Mark II family. The 17-position variant uses a detent lock and dual-row layout for ribbon cable — a different termination style and mating interface.
No official replacement or successor has been issued. The natural color housing and bulk packaging are standard for this production-grade interconnect.
