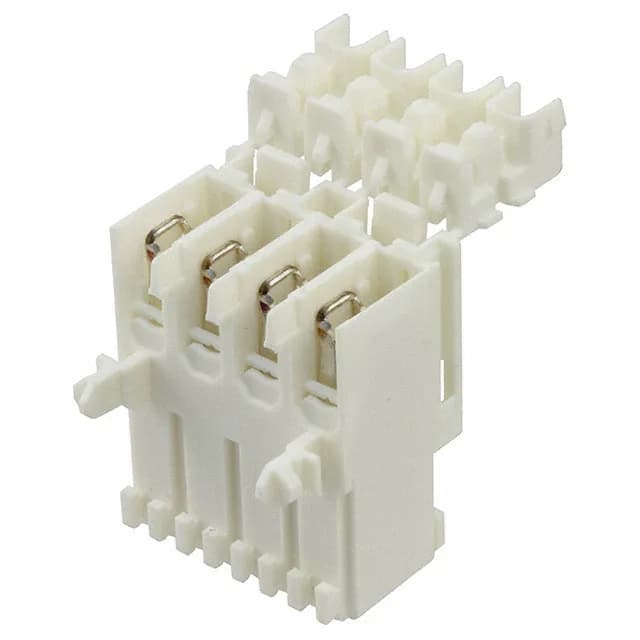

Mark II 4-Position IDC Receptacle for Discrete Wire
It uses tin-plated blade pin contacts and a latch lock for secure free-hanging (in-line) mating. The 5.00mm pitch provides enough spacing for routing individual conductors without crowding, and the natural housing is the standard finish for this series.
Termination and Wiring Fit
The IDC termination is the key feature here — it pierces the insulation of discrete wires without stripping, which speeds harness assembly. The 5.00mm pitch and single-row layout mean the wire exit is on one side, and the dual wire exit feature allows both ends of the receptacle to accept wires, giving flexibility in routing.
