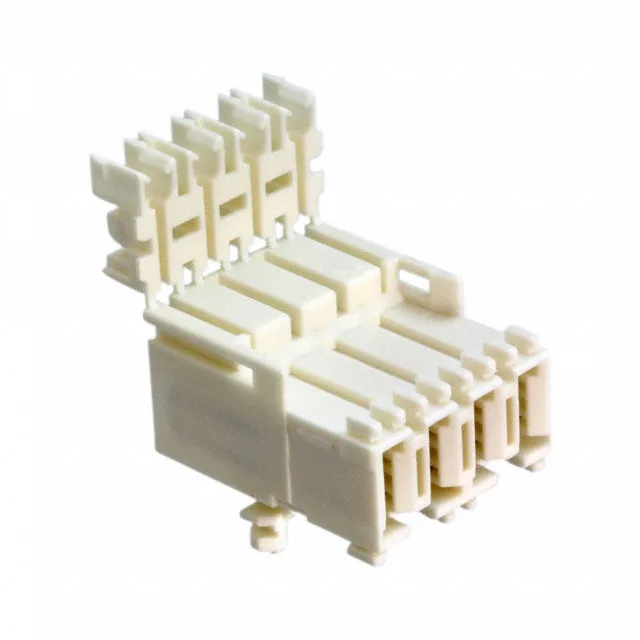

TE Mark II, Plug, 4 Positions, 1 Row, 0.197" (5.00mm) Pitch, IDC Termination, Free Hanging, Locking Ramp, Natural
| Parameter | Value |
|---|---|
| Series | Mark II |
| Wire type | Discrete |
| Type | Tab |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Cable termination | IDC |
| Color | Natural |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Rows | 1 |
| Positions | 4 |
IDC termination means the wire is pressed into insulation-displacement slots, not crimped — no loose terminals to handle, no secondary crimp tool. This speeds harness assembly for discrete wire runs where the conductor count is low (4 circuits here) and the wire type is solid or standard-stranded. The tab contacts are on the plug side, so the mating receptacle carries the sockets.
The 1534077-4 plug mates with the matching Mark II receptacle housing that accepts the tab contacts. The locking ramp on the plug engages the corresponding latch on the receptacle side for a vibration-resistant mate.
The 1534077-4 uses a 0.197" (5.00mm) pitch between positions, which is wide enough for moderate power handling and easy hand-wiring in harness assemblies.
