IDC terminal for 23-26 AWG magnetic wire

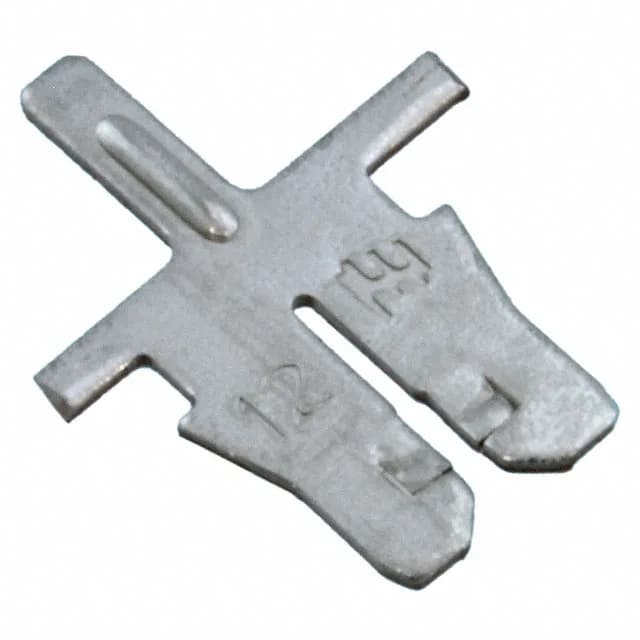

The 1534686-1 is a Style 300 IDC terminal in TE's Mag-Mate series, accepting 23-26 AWG magnetic wire and terminating to a PCB post. The IDC slot pierces the magnet wire insulation on insertion, eliminating a separate stripping step. Rated ROHS3 compliant.
Wire gauge contrast with 1394476-1
The 1534686-1 accepts 23-26 AWG, while the same-series 1394476-1 accepts 18-20 AWG. Both use IDC termination; the wire gauge range is the selection axis.
