TE Connectivity AMP Connectors 1534805-1 — D-Sub Backshells & Hoods

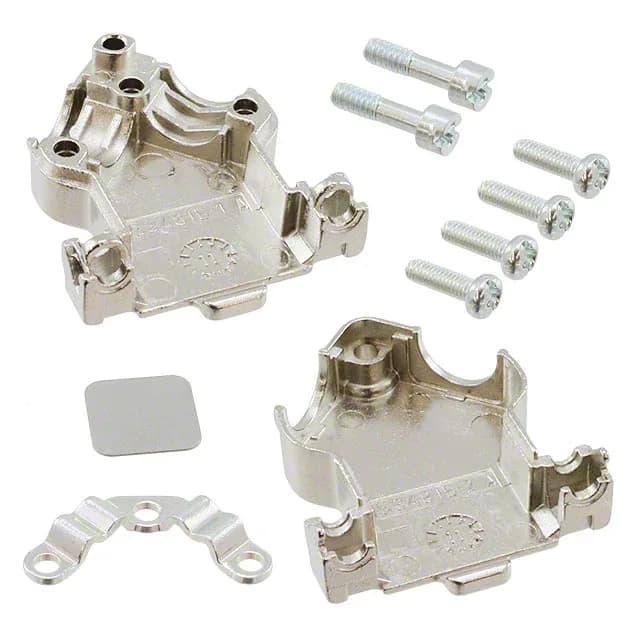

TE Connectivity 1534805-1 AMPLIMITE HD-20 Backshell, 9 Pos

MPN1534805-1
Active

TE Connectivity AMPLIMITE HD-20, Two Piece Backshell, 9 Positions, 45° Cable Exit, Shielded, Metal, Mating Screws 4-40, Assembly Hardware and Cable Clamp Included.

$11.8000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1534805-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1534805-1 specifications
ParameterValue
SeriesAMPLIMITE HD-20
Cable typeRound
Accessory typeTwo Piece Backshell
Cable exit45°
MaterialMetal, Gadolinium - Zinc
Primary materialMetal
PackageBag
FeaturesMating Screws 4-40
HardwareAssembly Hardware, Cable Clamp
ShieldingShielded
Positions9
Compatible D-Sub size9pos and HD15pos
Compatible shell sizeE

Product details

The TE Connectivity 1534805-1 is a two-piece metal backshell from the AMPLIMITE HD-20 series, designed to terminate and shield a round cable at a 45° exit angle to a standard 9-position D-sub connector. It includes the mating screws 4-40 and assembly hardware, plus a cable clamp, so the kit covers the mechanical retention and strain relief in one order. The shielded metal construction — gadolinium-zinc alloy — provides the EMI containment needed in industrial and telecom enclosures where radiated emissions must stay below the equipment limit.

Compatibility and Cable Routing

This backshell fits standard 9-position D-sub connectors and shell size E.

Frequently asked questions

Does the 1534805-1 include a cable clamp and mounting hardware?

Yes, the 1534805-1 includes assembly hardware and a cable clamp as part of the two-piece backshell kit, along with the mating screws 4-40 for connector retention. No additional hardware is needed for a standard D-sub installation.

Is the 1534805-1 compatible with standard 9-pin D-sub connectors?

Yes, the 1534805-1 is compatible with standard 9-position D-sub connectors and also fits HD-15 high-density connectors (shell size E). The 45° cable exit and shielded metal construction make it suitable for EMI-sensitive applications with round cable.
