TE Connectivity AMP Connectors 1544132-2 — Quick-Disconnect Terminals

TE PRONER 1544132-2 QC Receptacle, 0.250" Tab, 17-22 AWG

MPN1544132-2
Active

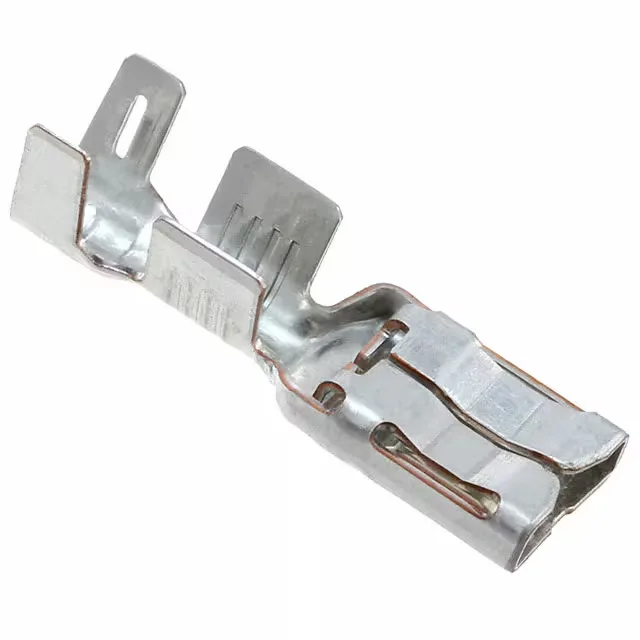

TE Connectivity AMP Connectors PRONER quick-disconnect receptacle, order code 1544132-2, female, 0.250" (6.35mm) tab width, 17-22 AWG, tin-plated brass, crimp termination, free hanging, non-insulated.

$0.4300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1544132-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesPRONER
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1544132-2 specifications
ParameterValue
SeriesPRONER
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge17-22 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.315\" (8.00mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.866\" (22.00mm)
Insulation diameter0.052\" ~ 0.102\" (1.32mm ~ 2.59mm)

Product details

0.250" tab receptacle for 17-22 AWG

The 1544132-2 is the female quick-disconnect receptacle in TE's PRONER series, accepting 17-22 AWG wire with a 0.250" (6.35mm) tab width. Tin-plated brass contact, crimp termination, free-hanging (in-line) mounting — non-insulated body with an overall length of 0.866" (22.00mm).

Tab width and wire range vs Utilux peers

Within the same 0.250" tab class, the 1544132-2's 17-22 AWG range overlaps the 17-20 AWG of the Utilux 1-1659250-0 and the 15-18 AWG of the Utilux 1-1627194-4 — the 1544132-2 covers the finer wire sizes not served by the 1-1627194-4.

Frequently asked questions

Will 1544132-2 drop into a panel specified around 1-1659250-0 without rewiring?

The 1544132-2 uses a 0.250" (6.35mm) tab width versus the 0.248" (6.30mm) tab of the 1-1659250-0 — the 0.002" difference is within the mating tab tolerance for most standard 0.250" quick-disconnect tabs, but the wire range (17-22 AWG vs 17-20 AWG) means the 1544132-2 accommodates finer-gauge wire. Confirm the mating tab thickness: both are 0.032" (0.81mm) nominal.
