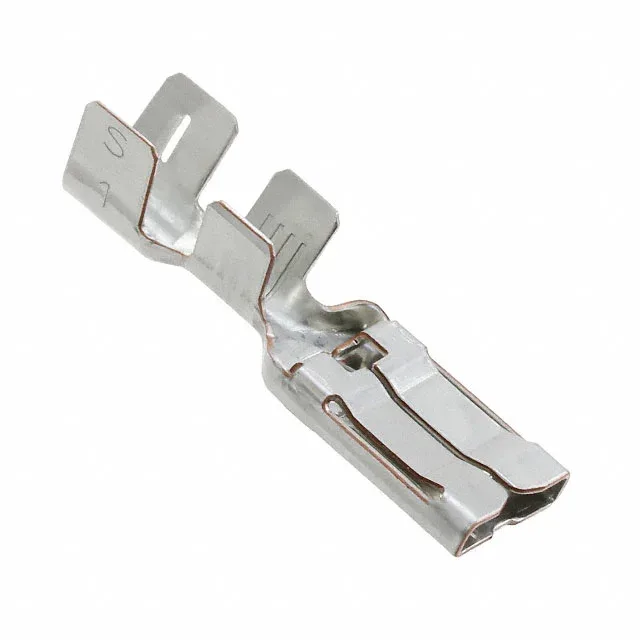

TE Connectivity AMP Connectors PRONER quick-disconnect receptacle, order code 1544227-1, female, 0.315" (8.00mm) tab width, 10-12 AWG, tin-plated copper alloy, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PRONER |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 10-12 AWG |
| Tab width | 0.315\" (8.00mm) |
| Contact material | Copper Alloy |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.433\" (11.00mm) |
| Termination | Crimp |
| Tab thickness | 0.039\" (0.99mm) |
| Contact finish | Tin |
| Length - overall | 1.181\" (30.00mm) |
| Insulation diameter | 0.244\" (6.20mm) |
The 1544227-1 is a female quick-disconnect receptacle in the TE PRONER series, accepting 10-12 AWG wire with a crimp termination for free-hanging, in-line installation. The tin-plated copper alloy contact provides a standard-duty interface for repeated connect/disconnect cycles in power distribution and panel wiring.
The 1544227-1 is a female receptacle with a tab width of 0.315" (8.00mm) and a tab thickness of 0.039" (0.99mm).
The 1544227-1 is ROHS3 compliant per the manufacturer's listing.
