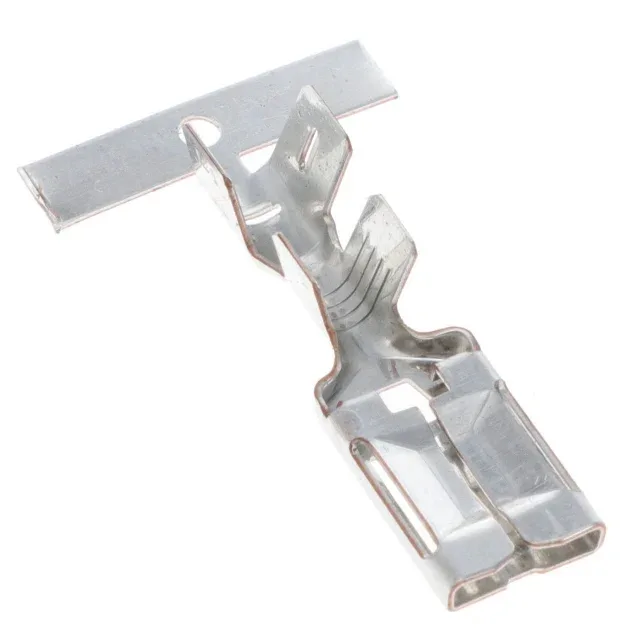

TE Connectivity AMP Connectors quick-disconnect terminal, order code 1544965-1, female, non-insulated, 0.315" (8.00mm) tab width, 9-10 AWG, tin-plated copper alloy, crimp termination, free hanging in-line.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 9-10 AWG |
| Tab width | 0.315\" (8.00mm) |
| Contact material | Copper Alloy |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.429\" (10.90mm) |
| Termination | Crimp |
| Tab thickness | 0.039\" (0.99mm) |
| Contact finish | Tin |
| Length - overall | 1.181\" (30.00mm) |
| Insulation diameter | 0.193\" ~ 0.233\" (4.90mm ~ 5.92mm) |
The 1544965-1 is a non-insulated female quick-disconnect terminal from TE Connectivity AMP Connectors, sized for 9-10 AWG wire with a 0.315" (8.00mm) tab width. Tin-plated copper alloy contact, crimp termination, free hanging in-line mounting — overall length 1.181" (30.00mm).
