TE Connectivity AMP Connectors 1546310-3

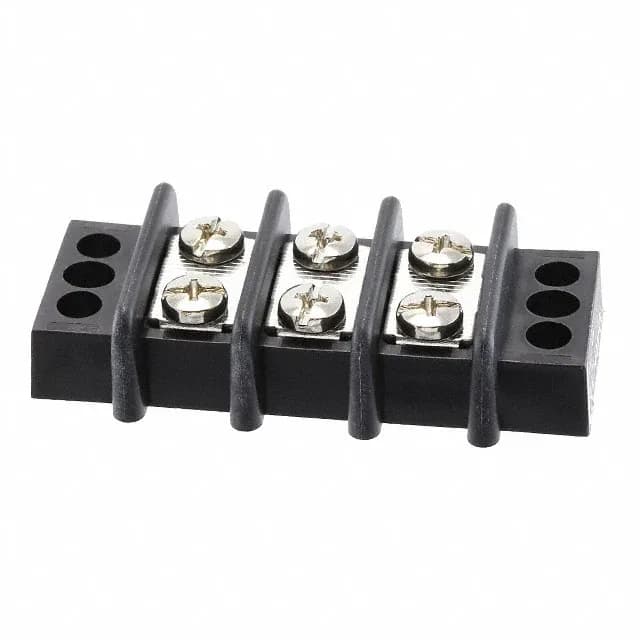

TE Connectivity 1546310-3 Buchanan Barrier Strip, 3 Circuit

MPN 1546310-3
Active

TE Connectivity Buchanan barrier strip, 3 circuits, 0.563" (14.30 mm) pitch, 30 A, 300 V, 10-22 AWG, dual-wall barrier, screw termination, panel mount, black PBT housing, UL94 V-0.

$4.3200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1546310-3 key specifications
ParameterValue
SeriesBuchanan
Barrier type2 Wall (Dual)
MountingChassis, Panel
Terminal block typeBarrier Block
Voltage rating300V
Current rating30A
Wire gauge10-22 AWG
Terminal screw finishNickel
Number of wire entries6
Terminal screw materialSteel
Operating temperature-40°C ~ 120°C
ColorBlack

All specifications

1546310-3 additional specifications
ParameterValue
Material - insulationPolybutylene Terephthalate (PBT)
Material flammability ratingUL94 V-0
Pitch0.563\" (14.30mm)
PackageBulk
FeaturesFlange
Rows2
Top terminationScrews
Bottom terminationClosed
Number of circuits3

Product details

Barrier Block, 3 Circuits, 30 A — Panel-Mount Power Distribution

The TE Connectivity Buchanan 1546310-3 is a 3-circuit barrier strip rated 30 A at 300 V, built for terminating power conductors up to 10 AWG in a panel-mount footprint. The 0.563" (14.30 mm) pitch gives enough room between terminals to land dual 10 AWG wires without crowding the screw heads — a common pain point on tighter-pitch blocks. The dual-wall barrier (2 Wall) isolates adjacent circuits physically, reducing the chance of a stray strand bridging across terminals during termination.

Wire Gauge and Termination — Screw Clamp with Closed Bottom

Wire entry is 10-22 AWG — the 10 AWG end is what makes this block a power distribution point rather than a signal terminal. The top termination is screws (steel, nickel finish), and the bottom termination is closed, meaning the screw clamp bears directly on the conductor without a separate wire-cage or pressure plate. Six wire entries (two per circuit) let you daisy-chain a feed and a load on the same circuit. The closed bottom keeps stray strands from exiting below the block, which matters when the strip is mounted against a grounded panel.

Mounting is chassis or panel via the integral flange — no DIN rail adapter needed, just two screws through the flange holes into the panel. The PBT insulation holds up under continuous 120°C ambient without softening the screw torque retention.
