TE Connectivity AMP Connectors 1546350-2

TE CPC Backshell 1546350-2, Size 23, 1 3/8-18 UNEF

MPN 1546350-2
Active

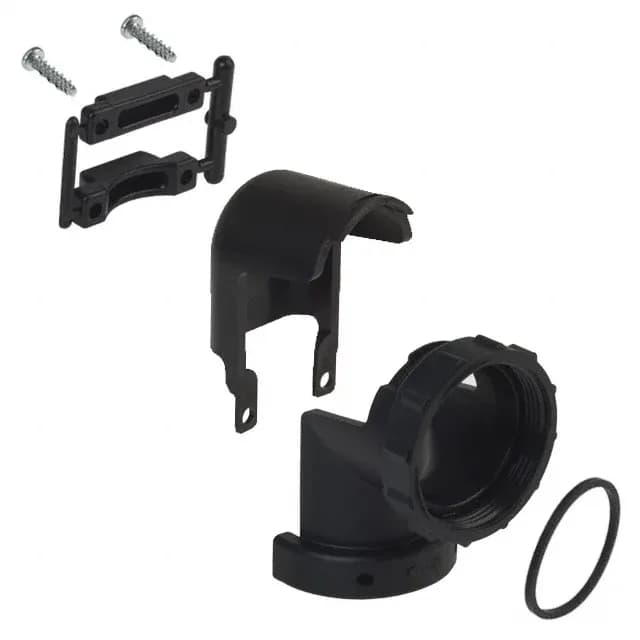

TE Connectivity CPC backshell, size 23, 1 3/8-18 UNEF thread, 90° cable exit, 0.703" (17.86mm) cable opening, black polyamide, UL94 V-0, includes clamp screws and cover.

$13.5600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCPC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1546350-2 specifications
ParameterValue
TypeBackshell, Cable Clamp
SeriesCPC
Cable exit90°
Cable opening0.703\" (17.86mm)
ColorBlack
MaterialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
PackageBulk
FeaturesClamp Screws, Cover
Includes7 pcs - 4 pc Cable Clamp, 1 Flat Ring, 2 Screws
Connector size1 3/8-18 UNEF
Shell size - insert23
For use with (Related products)CPC Connectors

Product details

The TE Connectivity 1546350-2 is a size 23 backshell with integrated cable clamp for the CPC (Circular Plastic Connector) series. The kit includes the clamp halves, a flat ring, and the mounting screws, so no separate hardware sourcing is needed. The 1 3/8-18 UNEF thread mates directly with the shell of a size 23 CPC connector. The 0.703" (17.86 mm) cable opening accepts a cable bundle up to that diameter — measure your cable OD before ordering to confirm the clamp closes fully around the jacket.

Thread Fit and Cable Range

The thread is 1 3/8-18 UNEF, a standard size for CPC size 23 shells. This is not a metric thread — it is a UNEF (Unified Extra Fine) series, so confirm your mating shell uses the same thread form. The cable opening is 0.703" (17.86 mm), which is the maximum bundle diameter the clamp can grip. If your cable is smaller, the clamp still tightens down; if it is larger, you need a different backshell size or a straight-exit version with a larger bore.
