TE Connectivity AMP Connectors 1551920-1 — Pluggable Assemblies

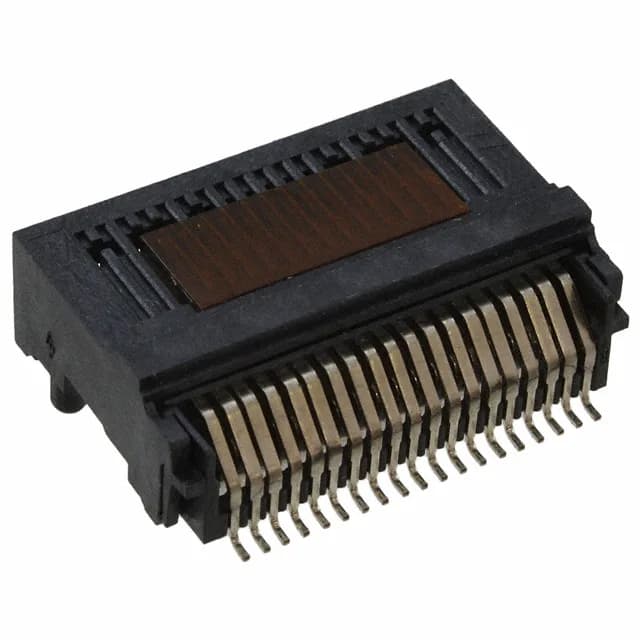

TE 1551920-1 ZQSFP+ Receptacle, 38 Pos, SMT Right Angle

MPN1551920-1
Active

TE Connectivity ZQSFP+ receptacle, 38 positions, surface mount right-angle, gold 15.0µin contact finish, board guide, Tape & Reel.

$7.1100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1551920-1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1551920-1 specifications
ParameterValue
MountingSurface Mount, Right Angle
Connector typeReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
TerminationSolder
Contact finishGold
Positions38
Contact finish thickness15.0µin (0.38µm)

Product details

Board-edge ZQSFP+ receptacle for 28 Gbps lanes

The TE Connectivity 1551920-1 is a 38-position ZQSFP+ receptacle in a surface-mount, right-angle package. It sits at the board edge and accepts the standard QSFP+ / ZQSFP+ plug module — the 38 contacts map to the four high-speed differential lanes plus sideband signals defined by the QSFP MSA.

Active production — no obsolescence risk

There is no last-time-buy or end-of-life notice on this part number.

ZQSFP+ vs ZQSFP — what changed

The ZQSFP+ designation on this receptacle indicates it is built to the enhanced specification that supports higher data rates per lane compared to the original ZQSFP.

Termination is solder — surface-mount, right-angle — so the receptacle is reflow-soldered to the PCB in a standard SMT line. The Tape & Reel packaging (also available in Cut Tape) feeds into a pick-and-place machine for volume assembly.

Frequently asked questions

Is 1551920-1 a direct replacement for older ZQSFP connectors?

The 38-position pinout is identical, so it is a mechanical drop-in. The ZQSFP+ designation means the contact and footprint are tuned for higher data rates — it will work in a legacy ZQSFP layout but the signal-integrity benefit only matters if the PCB trace design supports the higher speed.
