Board-stacking receptacle for high-density mezzanine designs

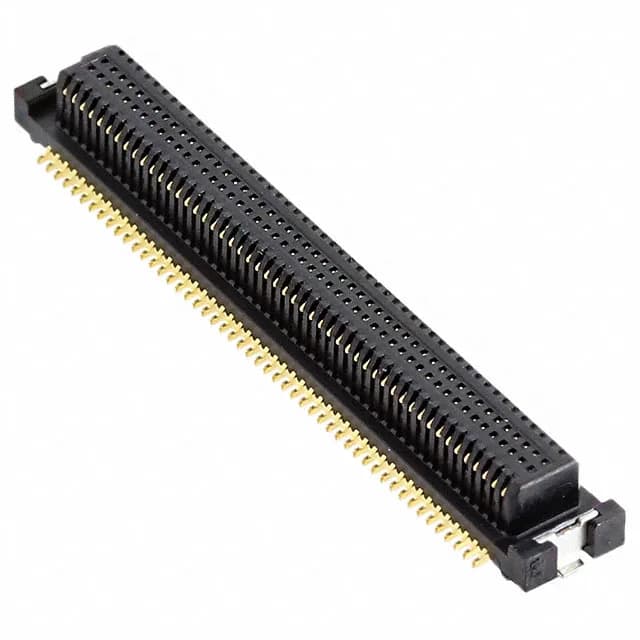

The TE Connectivity 1565357-1 is a 100-position receptacle from the Fine Mate series, designed as a center strip contact, surface-mount connector for board-to-board stacking. Its 0.020" (0.50mm) pitch and dual-row layout pack 100 circuits into a compact footprint — suited for high-I/O mezzanine links where board real estate is tight. Gold contact finish on both rows supports repeated mating cycles without degradation.
Mated stacking heights and board layout fit
This receptacle supports four mated stacking heights: 4 mm, 4.5 mm, 5.5 mm, and 6 mm.
The Tape & Reel packaging (also available in Cut Tape) suits automated pick-and-place lines.
