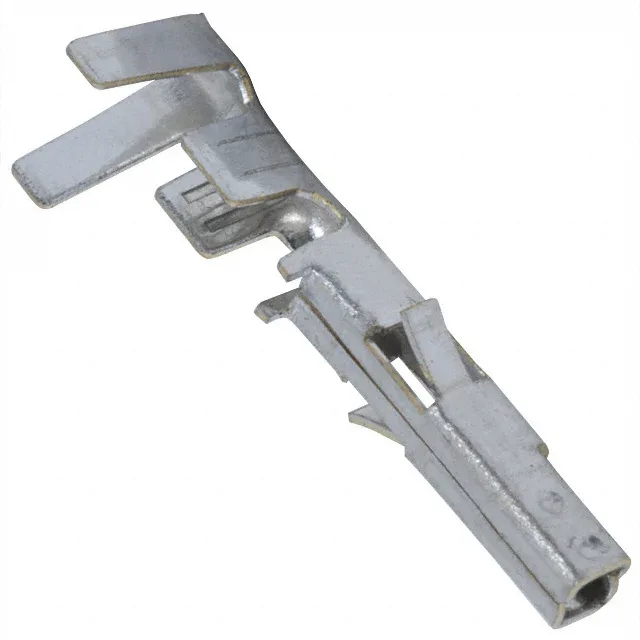

1586315-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE VAL-U-LOK 1586315-1 Socket Contact, 18-22 AWG, Tin

MPN1586315-1
Active

TE Connectivity AMP Connectors VAL-U-LOK stamped socket contact, order code 1586315-1, 18-22 AWG, tin-plated, crimp termination, bulk packaging.

$0.1Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1586315-1 Technical Specifications
ParameterValue
TypeStamped
SeriesVAL-U-LOK
Wire gauge18-22 AWG
PackageBulk
Pin or socketSocket
Contact finishTin
Contact terminationCrimp

Product details

Stamped socket for VAL-U-LOK housings

The 1586315-1 is a stamped socket contact from the TE Connectivity AMP Connectors VAL-U-LOK series, accepting 18-22 AWG wire with a tin-plated finish and crimp termination.

Wire gauge and plating contrast with series siblings

Within the VAL-U-LOK family, the 1586315-1 accepts 18-22 AWG wire, while the 1-1326032-0 socket is sized for 16 AWG with a thicker 31.5µin (0.80µm) tin plating, and the 929989-8 socket accepts 17-20 AWG. All three are active-production tin-plated crimp sockets; the wire gauge and plating thickness differences drive the selection for the harness current requirement.
