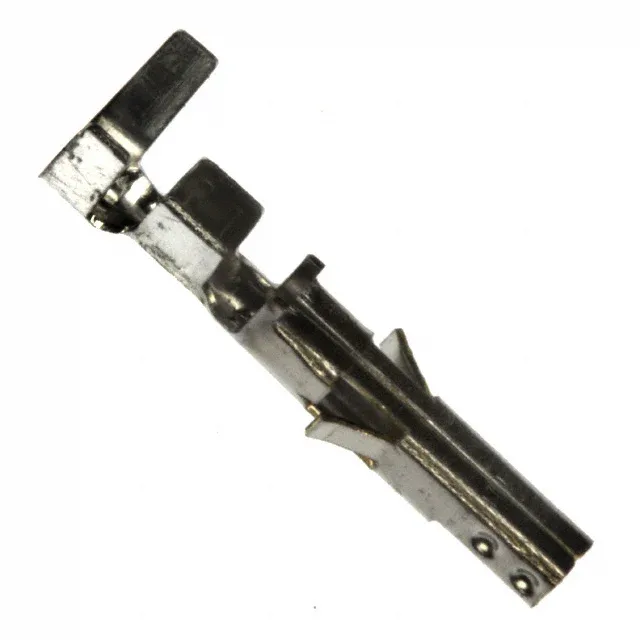

TE Connectivity AMP Connectors VAL-U-LOK stamped socket contact, order code 1586315-2, 18-22 AWG, gold mating finish 30.0µin (0.76µm), crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Type | Stamped |
| Series | VAL-U-LOK |
| Wire gauge | 18-22 AWG |
| Package | Bulk |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
The 1586315-2 is a stamped socket contact in the VAL-U-LOK series, accepting 18-22 AWG wire with crimp termination.
The 1586315-2 carries gold plating; the 1-1326032-0 and 929989-8 are tin-plated VAL-U-LOK sockets for cost-sensitive applications where fewer mating cycles are expected.
Both are VAL-U-LOK socket contacts with the same crimp termination and wire range — the 1586315-2 uses gold plating, while 1-1326032-0 uses tin. The contact body dimensions are shared across the series, so it fits the same housing and cavity.
